G125-MH23405L2P

Active

Harwin Inc.

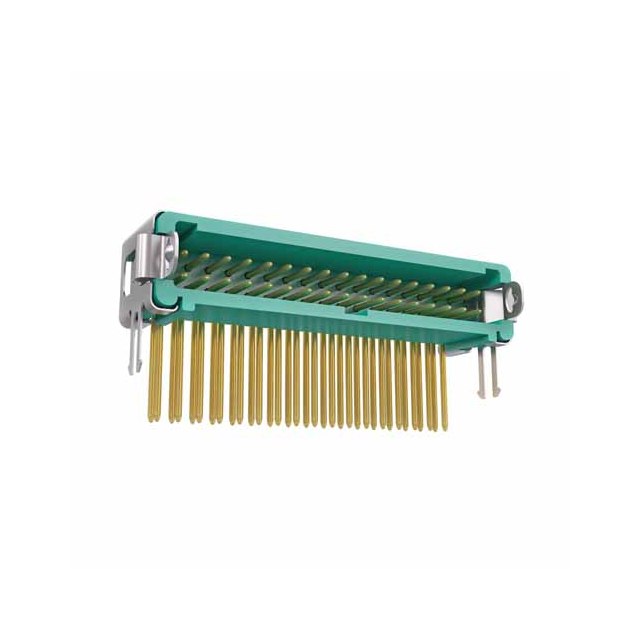

17+17 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G125-2040696L0 +2

G125-MH23405L2P

Active

Harwin Inc.

17+17 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet G125-2040696L0 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MH23405L2P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Length - Post	4.7 mm
Contact Length - Post	0.185 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.8 A
Fastening Type	Latch Lock
Insulation Color	Green
Insulation Height	0.217 "
Insulation Height	5.5 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

G125-MH2 Series

Part	Number of Rows	Voltage Rating	Connector Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Features	Insulation Height [z]	Number of Positions
Harwin Inc. G125-MH25005L2P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	50	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH23405L2P	2		Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Nylon Polyamide (PA)			Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.217 "	5.5 mm	Through Hole			34	0.185 in	4.7 mm	2.8 A
Harwin Inc. G125-MH22005L2P	2	250 VDC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Holder	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in		Circular	All	UL94 V-0	Gold		5.56 mm	Through Hole Right Angle			20	0.189 "	4.8 mm	2 A	Solder Retention	0.219 in
Harwin Inc. G125-MH21605L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm		0.189 "	4.8 mm	2 A			16
Harwin Inc. G125-MH21005L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	10	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH20605L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	6	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L2P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L2R	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A
Harwin Inc. G125-MH21205L3P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	12	0.189 "	4.8 mm	2 A	Solder Retention
Harwin Inc. G125-MH20605L7P	2	450 VAC/DC	Header	Male Pin	0.049 in	1.25 mm	Board to Board Cable	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.203 Ám	8 Áin	Solder	Phosphor Bronze	Latch Lock	-65 ░C	150 °C	Shrouded - 4 Wall	Green	1.25 mm	0.049 in	Gold	Circular	All	UL94 V-0	Gold	0.218 in	5.55 mm	Through Hole Right Angle	8 µin	0.203 µm	6	0.189 "	4.8 mm	2 A	Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1000	$ 12.73
Newark	Each	500	$ 16.59

Description

General part information

G125-MH2 Series

Connector Header Through Hole 34 position 0.049" (1.25mm)

Documents

Technical documentation and resources

Datasheet

G125-2040696L0

G125 Spec Sheet

Datasheet

G125-MH23405L2P
