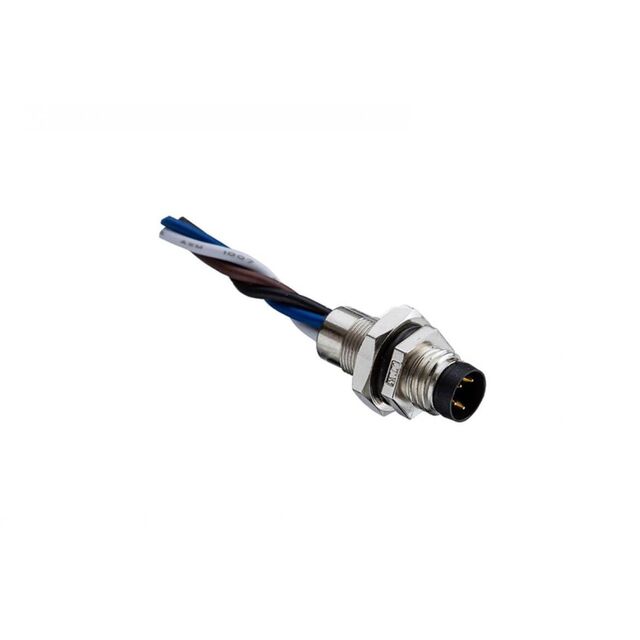

8-03PMMS-SH7002

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, METAL, 3A, 03 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, M8*0.5, SCREW THREAD, SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M8, A CODE, METAL, 3A, 03 PINS, MALE CONNECTOR, MALE CONTACT, HEXAGONAL, M8*0.5, SCREW THREAD, SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	8-03PMMS-SH7002

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M8-3
Shielding	Shielded
Voltage Rating	60 VDC

Part	Orientation	Shell Size - Insert	Shell Finish	Mounting Feature	Contact Finish - Mating	Voltage Rating	Shielding	Insert Material	Shell Material	Current Rating (Amps)	Contact Material	Ingress Protection	Primary Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color
Amphenol LTW 8-03PMMS-SH7002	Keyed	M8-3	Nickel	Bulkhead - Rear Side Nut	Gold	60 VDC	Shielded	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	3 A	Copper Alloy	IP67 - Dust Tight Waterproof	Metal	UL94 V-0	-40 °C	105 ░C	Male Pins Receptacle	Silver
Amphenol LTW 8-03PMMS-SF7001	Keyed	M8-3	Nickel	Bulkhead - Front Side Nut	Gold	60 VDC	Shielded	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	3 A	Copper Alloy	IP67 - Dust Tight Waterproof	Metal	UL94 V-0	-40 °C	105 ░C	Male Pins Receptacle	Silver
Amphenol LTW 8-03PMMS-SH7001	Keyed	M8-3	Nickel	Bulkhead - Rear Side Nut	Gold	60 VDC	Shielded	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	3 A	Copper Alloy	IP67 - Dust Tight Waterproof	Metal	UL94 V-0	-40 °C	105 ░C	Male Pins Receptacle	Silver
Amphenol LTW 8-03PMMS-SF7002	Keyed	M8-3	Nickel	Bulkhead - Front Side Nut	Gold	60 VDC	Shielded	Polyamide (PA) Nylon Glass Filled	Zinc Alloy	3 A	Copper Alloy	IP67 - Dust Tight Waterproof	Metal	UL94 V-0	-40 °C	105 ░C	Male Pins Receptacle	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
