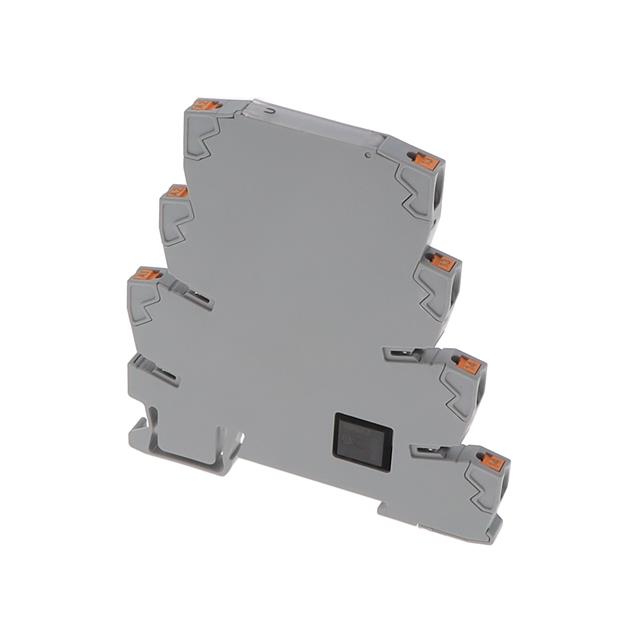

Technical Specifications
Parameters and characteristics for this part
| Specification | 2900383 |
|---|---|
| Approval Agency | DNV, UKCA, CE |
| Load Current | 1 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 300 V |
| Voltage - Load [Min] | 12 V |
290038 Series
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Load Current | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Voltage - Input | Mounting Type | Approval Agency | Package / Case | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact | 12 V | 300 V | 1 A | -25 °C | 60 °C | DC | 110 VDC | DIN Rail | CE DNV UKCA | Module | Screw Terminal |
Phoenix Contact | 12 V | 300 V | 1 A | -25 °C | 60 °C | DC | 220 VDC | DIN Rail | CE DNV UKCA | Module | Screw Terminal |
Phoenix Contact | 12 V | 300 V | 1 A | -25 °C | 60 °C | DC | 60 VDC | DIN Rail | CE DNV UKCA | Module | Screw Terminal |
Phoenix Contact | 12 V | 300 V | 1 A | -25 °C | 60 °C | DC | 5 VDC | DIN Rail | CE UKCA | Spring Terminal | |
Phoenix Contact | 12 V | 300 V | 1 A | -25 °C | 60 °C | DC | 24 V | DIN Rail | CE DNV UKCA | Module | Screw Terminal |
Phoenix Contact | 3 V | 33 V | 3 A | -25 °C | 60 °C | DC | 110 VDC | DIN Rail | CE DNV UKCA | Module | Screw Terminal |
Phoenix Contact | 12 V | 300 V | 1 A | -25 °C | 60 °C | DC | 230 VAC | DIN Rail | CE DNV UKCA | Module | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 80.04 | |
| 10 | $ 74.80 | |||
| 50 | $ 68.82 | |||
| 100 | $ 63.58 | |||
Description
General part information
290038 Series
Solid State SPST-NO (1 Form A) Module
