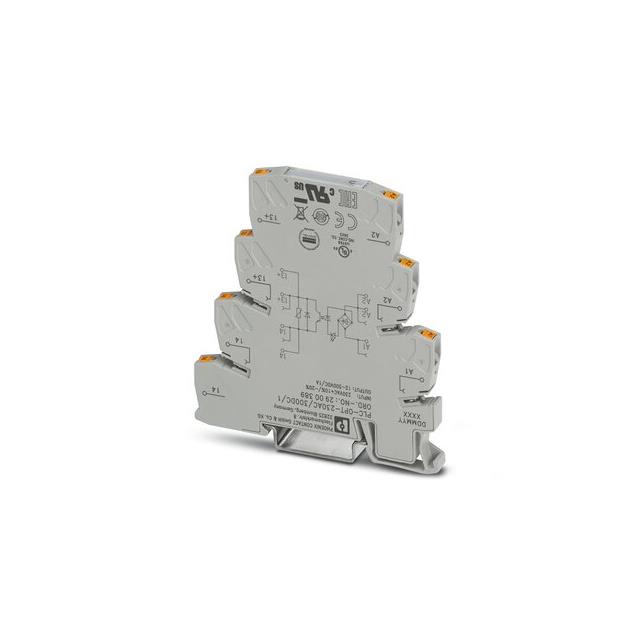

2900389

Active

Phoenix Contact

RELAY: SOLID STATE; SPST-NO; UCOIL: 230VAC; 1A; 1A/300VDC

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY: SOLID STATE; SPST-NO; UCOIL: 230VAC; 1A; 1A/300VDC

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Load [Min]	Voltage - Load [Max]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Voltage - Input	Mounting Type	Approval Agency	Package / Case	Termination Style
Phoenix Contact 2900385	12 V	300 V	1 A	-25 °C	60 °C	DC	110 VDC	DIN Rail	CE DNV UKCA	Module	Screw Terminal
Phoenix Contact 2900387	12 V	300 V	1 A	-25 °C	60 °C	DC	220 VDC	DIN Rail	CE DNV UKCA	Module	Screw Terminal
Phoenix Contact 2900384	12 V	300 V	1 A	-25 °C	60 °C	DC	60 VDC	DIN Rail	CE DNV UKCA	Module	Screw Terminal
Phoenix Contact 2900381	12 V	300 V	1 A	-25 °C	60 °C	DC	5 VDC	DIN Rail	CE UKCA		Spring Terminal
Phoenix Contact 2900383	12 V	300 V	1 A	-25 °C	60 °C	DC	24 V	DIN Rail	CE DNV UKCA	Module	Screw Terminal
Phoenix Contact 2900380	3 V	33 V	3 A	-25 °C	60 °C	DC	110 VDC	DIN Rail	CE DNV UKCA	Module	Screw Terminal
Phoenix Contact 2900389	12 V	300 V	1 A	-25 °C	60 °C	DC	230 VAC	DIN Rail	CE DNV UKCA	Module	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 76.87

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources
