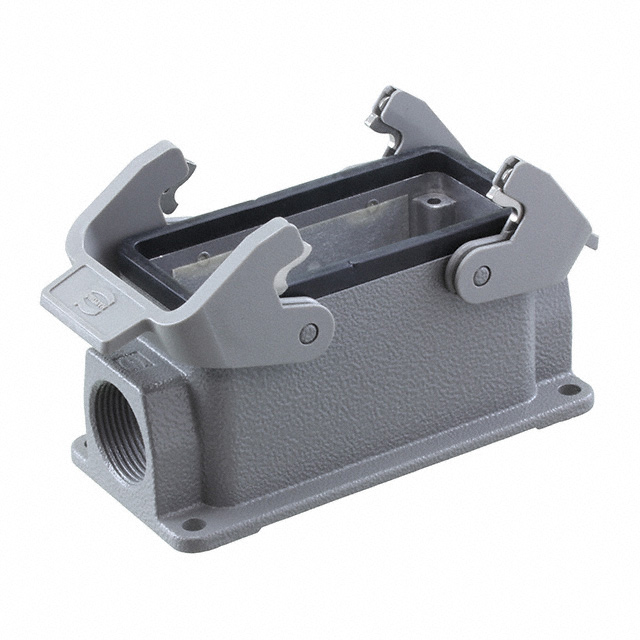

19340060271 - 19340060271

19340060271

Active
HARTING Technology Group

HEAVY DUTY HOUSING, 16B, 2 LEVER, ALUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet19340060271 Prod Declaration Cert+1
19340060271 - 19340060271

19340060271

Active
HARTING Technology Group

HEAVY DUTY HOUSING, 16B, 2 LEVER, ALUM

Deep-Dive with AI

DocumentsDatasheet19340060271 Prod Declaration Cert+1

Technical Specifications

Parameters and characteristics for this part

Specification19340060271
Connector TypeBase - Box Mount
FeaturesFeed Through
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (2) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size16 B
Size / Dimension [x]4.606 "
Size / Dimension [x]117 mm
Size / Dimension [y]2.244 "
Size / Dimension [y]57 mm
Size / Dimension [z]56 mm
Size / Dimension [z]2.205 in
StyleSide Entry
Thread SizeM25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 53.33
10$ 48.94
25$ 47.06
50$ 45.49
100$ 42.98
NewarkEach 1$ 53.78
5$ 50.24
10$ 47.13
25$ 44.38
50$ 41.94
100$ 39.75

Description

General part information

19340060 Series

Base - Box Mount Connector Side Entry M25 16B IP65 - Dust Tight, Water Resistant
