19340060731

Active

HARTING Technology Group

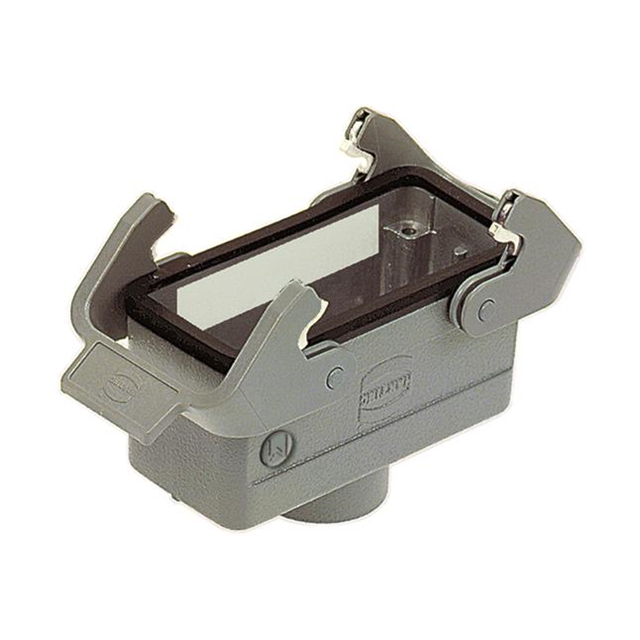

HAN HVE HOOD COUPLER LC 2 LEVERS M25 ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN HVE HOOD COUPLER LC 2 LEVERS M25 ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	19340060731

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	3.681 "
Size / Dimension [x]	93.5 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.866 "
Size / Dimension [z]	47.4 mm
Style	Bottom Entry
Thread Size	M25

Part	Thread Size	Housing Material	Lock Location	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Color	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Connector Type	Size	Features
HARTING Technology Group 19340060731	M25	Aluminum Die Cast	Locking Clip (2) on Hood Top	Powder Coated	125 °C	-40 °C	Bottom Entry	Gray	43 mm	1.866 "	1.693 in	3.681 "	93.5 mm	47.4 mm	IP65 - Dust Tight Water Resistant	Hood - Coupling	16 B	Cable to Cable
HARTING Technology Group 19340060521	M25	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Powder Coated	125 °C	-40 °C	Side Entry	Gray	43 mm	2.461 in	1.693 in	3.681 "	93.5 mm	62.5 mm	IP65 - Dust Tight Water Resistant	Hood	16 B
HARTING Technology Group 19340060271	M25	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Powder Coated	125 °C	-40 °C	Side Entry	Gray	57 mm	2.205 in	2.244 "	4.606 "	117 mm	56 mm	IP65 - Dust Tight Water Resistant	Base - Box Mount	16 B	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry M25 16B IP65 - Dust Tight, Water Resistant
