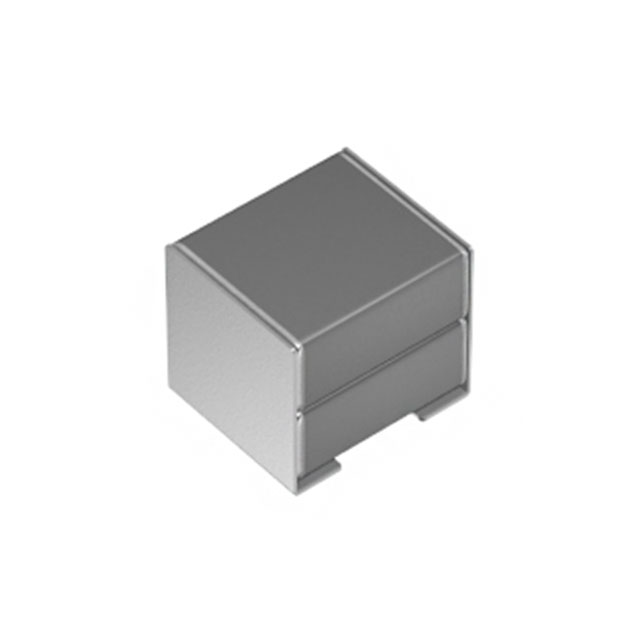

CKG57NC0G2E304J500JH
ActiveEPCOS - TDK Electronics
CAPACITOR: CERAMIC; MLCC; 300NF; 250V; C0G (NP0); ±5%; SMD; 2220
Deep-Dive with AI
Search across all available documentation for this part.
CKG57NC0G2E304J500JH
ActiveEPCOS - TDK Electronics
CAPACITOR: CERAMIC; MLCC; 300NF; 250V; C0G (NP0); ±5%; SMD; 2220
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CKG57NC0G2E304J500JH |
|---|---|
| Applications | SMPS Filtering, Boardflex Sensitive |
| Capacitance | 0.3 µF |
| Features | Low ESL |
| Lead Style | J-Lead |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Stacked SMD, 2 J-Lead |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) [Max] [custom] | 5.5 mm |
| Thickness (Max) [Max] [custom] | 0.217 in |
| Tolerance | 5 % |
| Voltage - Rated | 250 V |
megacap Series
| Part | Package / Case | Applications | Thickness (Max) [Max] | Thickness (Max) [Max] | Capacitance | Voltage - Rated | Lead Style | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Thickness (Max) [Max] [custom] | Thickness (Max) [Max] [custom] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EPCOS - TDK Electronics | J-Lead SMD | General Purpose | 6.9 mm | 0.272 in | 0.3 µF | 630 V | J-Lead | C0G NP0 | 6.1 mm | 0.24 " | 8.4 mm | 0.331 in | 5 % | -55 °C | 125 °C | MLCC Surface Mount | ||||
EPCOS - TDK Electronics | Stacked SMD 2 J-Lead | Automotive Boardflex Sensitive SMPS Filtering | 0.3 µF | 250 V | J-Lead | C0G NP0 | 5 mm | 0.197 " | 6 mm | 0.236 in | 5 % | -55 °C | 125 °C | MLCC Surface Mount | Low ESL | 5.5 mm | 0.217 in | AEC-Q200 | ||
EPCOS - TDK Electronics | Stacked SMD 2 J-Lead | Boardflex Sensitive SMPS Filtering | 0.3 µF | 250 V | J-Lead | C0G NP0 | 5 mm | 0.197 " | 6 mm | 0.236 in | 5 % | -55 °C | 125 °C | MLCC Surface Mount | Low ESL | 5.5 mm | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
megacap Series
0.3 µF ±5% 250V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead
