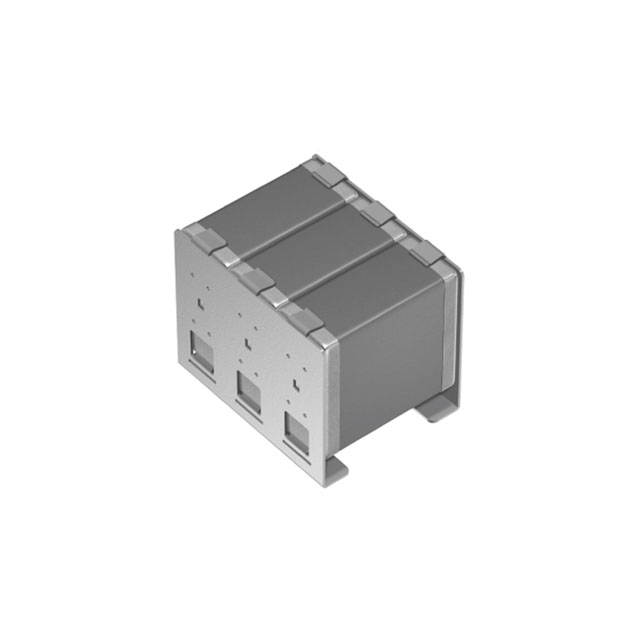

CAA573C0G2J304J640LH

Active

EPCOS - TDK Electronics

CAPACITOR: CERAMIC; MLCC; 300NF; 630V; C0G (NP0); ±5%; SMD; 2220

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

CAPACITOR: CERAMIC; MLCC; 300NF; 630V; C0G (NP0); ±5%; SMD; 2220

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Capacitance	Voltage - Rated	Lead Style	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]	Ratings
EPCOS - TDK Electronics CAA573C0G2J304J640LH	J-Lead SMD	General Purpose	6.9 mm	0.272 in	0.3 µF	630 V	J-Lead	C0G NP0	6.1 mm	0.24 "	8.4 mm	0.331 in	5 %	-55 °C	125 °C	MLCC Surface Mount
EPCOS - TDK Electronics CKG57NC0G2E304J500JJ	Stacked SMD 2 J-Lead	Automotive Boardflex Sensitive SMPS Filtering			0.3 µF	250 V	J-Lead	C0G NP0	5 mm	0.197 "	6 mm	0.236 in	5 %	-55 °C	125 °C	MLCC Surface Mount	Low ESL	5.5 mm	0.217 in	AEC-Q200
EPCOS - TDK Electronics CKG57NC0G2E304J500JH	Stacked SMD 2 J-Lead	Boardflex Sensitive SMPS Filtering			0.3 µF	250 V	J-Lead	C0G NP0	5 mm	0.197 "	6 mm	0.236 in	5 %	-55 °C	125 °C	MLCC Surface Mount	Low ESL	5.5 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.3 µF ±5% 630V Ceramic Capacitor C0G, NP0 SMD, J-Lead
