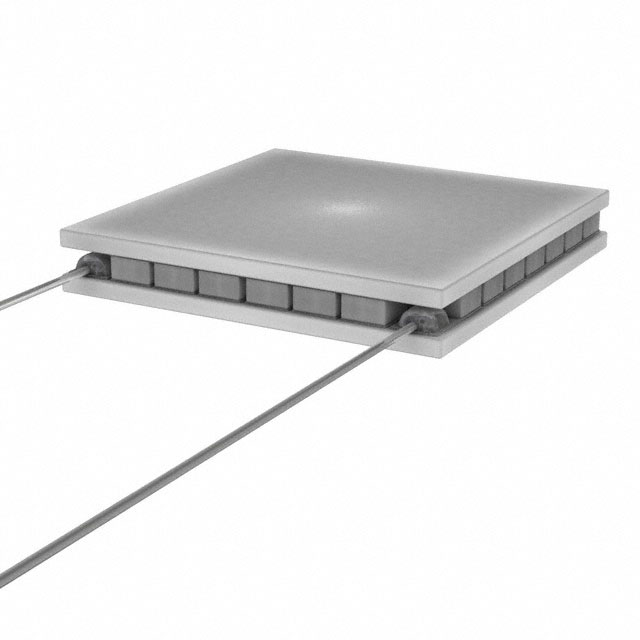

430548-508

Laird Thermal Systems, Inc.

ET20,68,F1A,1313,11,EP,W2.25

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

ET20,68,F1A,1313,11,EP,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Resistance	Current - Max [Max]	Qmax @ Th	Height [z]	Features	Number of Stages
Laird Thermal Systems, Inc. 430548-502	67 °C	13.2 mm	13.2 mm	80 °C	3.55 Ohms	2 A	9.3 W	2.18 mm	Lead Wires Non-Sealed	1
Laird Thermal Systems, Inc. 430548-503	67 °C	13.2 mm	13.2 mm	80 °C	3.55 Ohms	2 A	9.3 W		Lead Wires Non-Sealed	1
Laird Thermal Systems, Inc. 430548-508	67 °C	13.2 mm	13.2 mm	80 °C	3.55 Ohms	2 A	9.3 W	2.18 mm	Lead Wires Sealed - Epoxy	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.94

General part information

Peltier Module 9.3W @ 25°C 2 A 80°C
