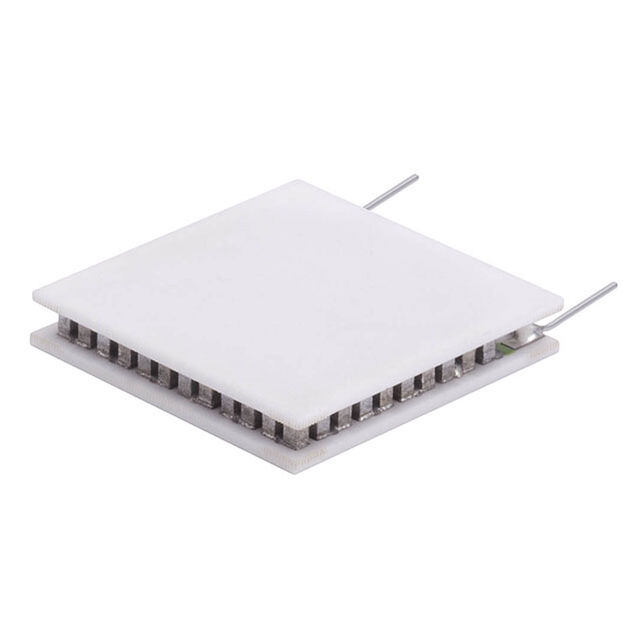

430548-503

Active

Laird Thermal Systems, Inc.

ET20,68,F1A,1313,GG,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

ET20,68,F1A,1313,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Resistance	Current - Max [Max]	Qmax @ Th	Height [z]	Features	Number of Stages
Laird Thermal Systems, Inc. 430548-502	67 °C	13.2 mm	13.2 mm	80 °C	3.55 Ohms	2 A	9.3 W	2.18 mm	Lead Wires Non-Sealed	1
Laird Thermal Systems, Inc. 430548-503	67 °C	13.2 mm	13.2 mm	80 °C	3.55 Ohms	2 A	9.3 W		Lead Wires Non-Sealed	1
Laird Thermal Systems, Inc. 430548-508	67 °C	13.2 mm	13.2 mm	80 °C	3.55 Ohms	2 A	9.3 W	2.18 mm	Lead Wires Sealed - Epoxy	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 9.3W @ 25°C 2 A 80°C
