034-1028

Active

Amphenol RF

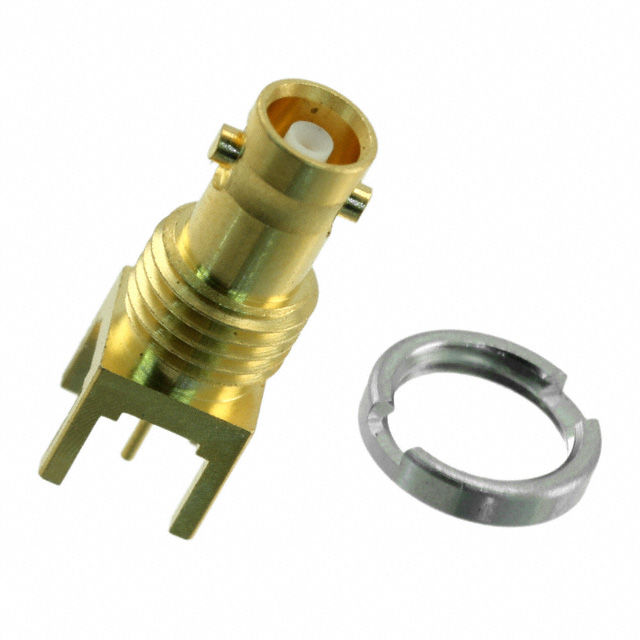

RF / COAXIAL CONNECTOR, HD BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 75 OHM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN One Page Summary EN

034-1028

Active

Amphenol RF

RF / COAXIAL CONNECTOR, HD BNC COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 75 OHM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDrawing EN One Page Summary EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	034-1028

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	HD, BNC
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Nut, 1 Connector
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

034-10 Series

Part	Contact Termination	Body Finish	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Cable Group	Housing Color	Fastening Type	Includes	Number of Ports	Frequency - Max [Max]	Body Material	Connector Type	Center Contact Material	Connector Style	Impedance	Mounting Type	Dielectric Material	Center Contact Plating	Voltage Rating	Mounting Feature
Amphenol RF 034-1033	Crimp	Nickel	Crimp	-65 ░C	165 °C	500	Times Fiber 210	Silver	Bayonet Lock	1 Connector 1 Contact 1 Ferrule	1	3 GHz	Brass	Male Pin Plug	Phosphor Bronze	BNC HD	75 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold
Amphenol RF 034-1025-12G	Crimp	Nickel	Crimp	-65 ░C	165 °C	500	734A AT&T 734 Belden 1505A	Silver	Bayonet Lock	1 Connector 1 Contact 1 Ferrule	1	18 GHz	Brass	Male Pin Plug	Phosphor Bronze	BNC HD	75 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold
Amphenol RF 034-1017-300	Crimp	Nickel	Crimp	-65 ░C	165 °C	500	1694A 9248 Belden 1694	Silver	Bayonet Lock	1 Connector 1 Contact 1 Ferrule	1	3 GHz	Brass	Male Pin Plug	Phosphor Bronze	BNC HD	75 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold
Amphenol RF 034-1055	Crimp	Nickel	Crimp	-65 ░C	165 °C	500	735A AT&T 735 Belden 735A1	Silver	Bayonet Lock	1 Connector 1 Contact 1 Ferrule	1	6000 MHz	Brass	Male Pin Plug	Phosphor Bronze	BNC HD	75 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold
Amphenol RF 034-1021	Solder	Gold	Solder	-65 ░C	165 °C	500		Gold	Bayonet Lock		1	4.5 GHz	Brass	Female Socket Receptacle	Beryllium Copper	BNC HD	75 Ohms	Through Hole	Polytetrafluoroethylene (PTFE)	Gold	335 V
Amphenol RF 034-1030	Solder	Gold Nickel	Solder	-65 ░C	165 °C	500		Gold Silver	Bayonet Lock	1 Connector 1 Nut	1	4.5 GHz	Brass	Female Socket Jack	Beryllium Copper	BNC HD	75 Ohms	Panel Mount Right Angle Through Hole	Polytetrafluoroethylene (PTFE)	Gold		Bulkhead - Front Side Nut
Amphenol RF 034-1026-12G	Crimp	Nickel	Crimp	-65 ░C	165 °C	500	180 180A 180B 1865A 195 Belden 1855 RG-122	Silver	Bayonet Lock	1 Connector 1 Contact 1 Ferrule	1	18 GHz	Brass	Male Pin Plug	Phosphor Bronze	BNC HD	75 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold
Amphenol RF 034-1037	Crimp	Nickel	Crimp	-65 ░C	165 °C	500	180 180A 180B 1865A 195 Belden 1855 RG-122	Silver	Bayonet Lock	1 Connector 1 Contact 1 Ferrule	1	4 GHz	Brass	Male Pin Plug	Phosphor Bronze	BNC HD	75 Ohms	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Gold
Amphenol RF 034-1028H-12G	Solder	Gold	Solder	-65 ░C	165 °C	500		Gold	Bayonet Lock	1 Connector 1 Nut	1	18 GHz	Brass	Female Socket Jack	Beryllium Copper	BNC HD	75 Ohms	Panel Mount Through Hole	Polytetrafluoroethylene (PTFE)	Gold		Bulkhead - Front Side Nut
Amphenol RF 034-1028	Solder	Gold	Solder	-65 ░C	165 °C	500		Gold	Bayonet Lock	1 Connector 1 Nut	1	4 GHz	Brass	Female Socket Receptacle	Beryllium Copper	BNC HD	75 Ohms	Panel Mount Through Hole	Polytetrafluoroethylene (PTFE)	Gold		Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.58
		10	$ 7.75
		25	$ 7.33
		50	$ 7.15
		100	$ 6.79
		300	$ 6.08
		500	$ 5.72
		1000	$ 5.00
Newark	Each	1	$ 14.93
		5	$ 14.61
		10	$ 13.80
		25	$ 12.73
		50	$ 12.42
		100	$ 11.16
		250	$ 10.54

Description

General part information

034-10 Series

BNC, HD Connector Receptacle, Female Socket 75 Ohms Panel Mount, Through Hole Solder

Documents

Technical documentation and resources

Drawing EN

Datasheet

One Page Summary EN

Datasheet
