034-1026-12G
ActiveAmphenol RF
CONN HDBNC PLUG STR 75 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
034-1026-12G
ActiveAmphenol RF
CONN HDBNC PLUG STR 75 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 034-1026-12G |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 195, Belden 1855, 180B, 1865A, 180A, 180, RG-122 |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | HD, BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |

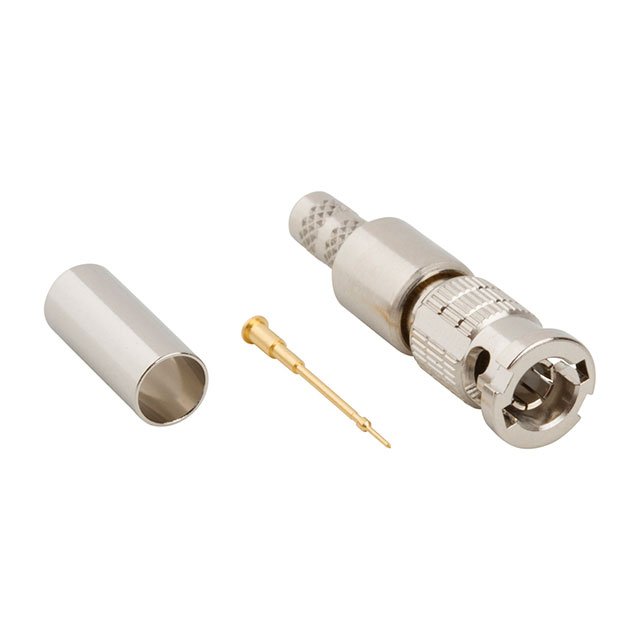

| Includes | 1 Connector, 1 Ferrule, 1 Contact |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.97 | |
| 10 | $ 11.49 | |||
| 25 | $ 11.05 | |||
| 50 | $ 10.61 | |||
| 100 | $ 10.02 | |||
| 300 | $ 9.13 | |||
| 500 | $ 8.55 | |||
| 1000 | $ 7.84 | |||
Description
General part information
034-10 Series
BNC, HD Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
