APH-NJ-HDBNCJ

Active

Amphenol RF

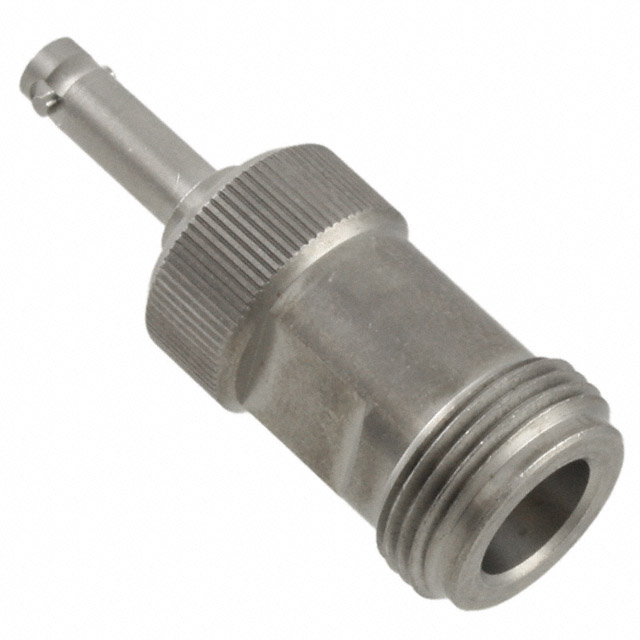

CONN TYPE N-BNC ADAPTER F/F 0HZ TO 4GHZ 75OHM ST GOLD BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N-BNC ADAPTER F/F 0HZ TO 4GHZ 75OHM ST GOLD BAG

Technical Specifications

Parameters and characteristics for this part

Specification	APH-NJ-HDBNCJ

Adapter Series	N, BNC, HD
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC HD Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Body Finish	Mounting Type	Convert From (Adapter End)	Adapter Series	Center Contact Plating	Style	Dielectric Material	Adapter Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Material	Convert To (Adapter End)	Conversion Type	Center Gender	Fastening Type	Frequency - Max [Max]	Mating Cycles
Amphenol RF APH-NJ-FP	50 Ohms	Nickel	Free Hanging (In-Line)	Female Socket N Jack	N to F	Gold	Straight	Polytetrafluoroethylene (PTFE)	Plug to Jack	Waterproof	-65 ░C	165 °C	Brass	Phosphor Bronze	F Plug Male Pin	Between Series
Amphenol RF APH-NJ-BNCJ	50 Ohms	Nickel	Free Hanging (In-Line)	BNC Jack Female Socket	BNC to N	Gold	Straight	Polytetrafluoroethylene (PTFE)	Jack to Jack		-65 ░C	165 °C	Brass	Phosphor Bronze	Female Socket N Jack	Between Series	Female to Female	Bayonet Lock Threaded	4 GHz
Amphenol RF APH-NJ-BNCP	50 Ohms	Nickel	Free Hanging (In-Line)	BNC Plug Male Pin	BNC to N	Gold	Straight	Polytetrafluoroethylene (PTFE)	Plug to Jack		-65 ░C	165 °C	Brass	Phosphor Bronze	Female Socket N Jack	Between Series		Bayonet Lock Threaded	4 GHz
Amphenol RF APH-NJ-HDBNCJ	75 Ohms		Free Hanging (In-Line)	BNC HD Jack Female Socket	BNC HD N	Gold	Straight	Polytetrafluoroethylene (PTFE)	Jack to Jack		-65 ░C	165 °C	Stainless Steel	Beryllium Copper	Female Socket N Jack	Between Series	Female to Female	Bayonet Lock Threaded	4 GHz	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 71.02

General part information

Adapter Coaxial Connector BNC HD Jack, Female Socket To N Jack, Female Socket 75 Ohms
