APH-NJ-FP

Obsolete

Amphenol RF

COAX ADAPT N TO F

Search across all available documentation for this part.

Obsolete

Amphenol RF

COAX ADAPT N TO F

Technical Specifications

Parameters and characteristics for this part

Specification	APH-NJ-FP

Adapter Series	N to F
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Male Pin, F Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Ingress Protection	Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Impedance	Body Finish	Mounting Type	Convert From (Adapter End)	Adapter Series	Center Contact Plating	Style	Dielectric Material	Adapter Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Center Contact Material	Convert To (Adapter End)	Conversion Type	Center Gender	Fastening Type	Frequency - Max [Max]	Mating Cycles
Amphenol RF APH-NJ-FP	50 Ohms	Nickel	Free Hanging (In-Line)	Female Socket N Jack	N to F	Gold	Straight	Polytetrafluoroethylene (PTFE)	Plug to Jack	Waterproof	-65 ░C	165 °C	Brass	Phosphor Bronze	F Plug Male Pin	Between Series
Amphenol RF APH-NJ-BNCJ	50 Ohms	Nickel	Free Hanging (In-Line)	BNC Jack Female Socket	BNC to N	Gold	Straight	Polytetrafluoroethylene (PTFE)	Jack to Jack		-65 ░C	165 °C	Brass	Phosphor Bronze	Female Socket N Jack	Between Series	Female to Female	Bayonet Lock Threaded	4 GHz
Amphenol RF APH-NJ-BNCP	50 Ohms	Nickel	Free Hanging (In-Line)	BNC Plug Male Pin	BNC to N	Gold	Straight	Polytetrafluoroethylene (PTFE)	Plug to Jack		-65 ░C	165 °C	Brass	Phosphor Bronze	Female Socket N Jack	Between Series		Bayonet Lock Threaded	4 GHz
Amphenol RF APH-NJ-HDBNCJ	75 Ohms		Free Hanging (In-Line)	BNC HD Jack Female Socket	BNC HD N	Gold	Straight	Polytetrafluoroethylene (PTFE)	Jack to Jack		-65 ░C	165 °C	Stainless Steel	Beryllium Copper	Female Socket N Jack	Between Series	Female to Female	Bayonet Lock Threaded	4 GHz	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

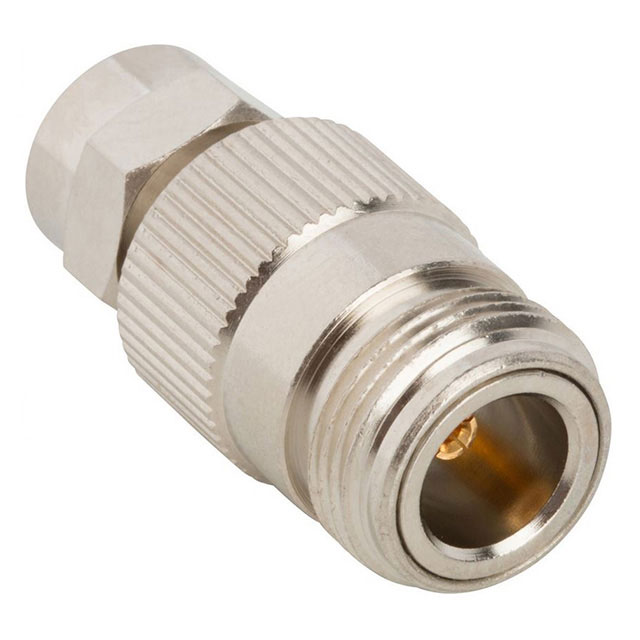

Adapter Coaxial Connector N Jack, Female Socket To F Plug, Male Pin 50 Ohms
