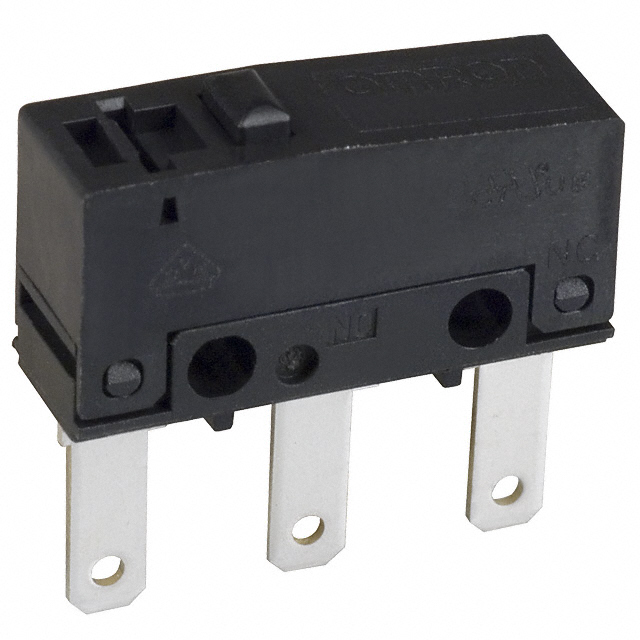

SS-3GPT
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
SS-3GPT
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACTION SPDT 3A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-3GPT |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 3 A |
| Differential Travel | 0.15 mm |
| Differential Travel | 0.006 in |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 153 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.4 mm |
| Overtravel | 0.015 " |
| Pretravel | 0.024 in |
| Pretravel | 0.6 mm |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
