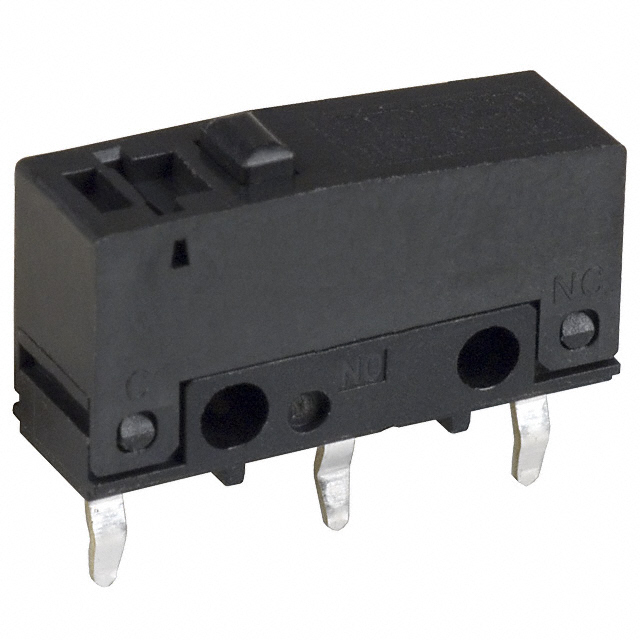

SS-3GPD

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Mounting Type	Pretravel	Pretravel	Release Force	Operating Force	Overtravel	Overtravel	Voltage Rating - AC	Electrical Life	Mechanical Life	Actuator Type	Current Rating (Amps)	Operating Position	Operating Position	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Differential Travel	Differential Travel	Ingress Protection	Switch Function	Circuit
Omron Electronics Inc-EMC Div SS-3GPD	30 V	Through Hole	0.024 in	0.6 mm	20 gf	153 gf	0.4 mm	0.015 "	125 V	100000 Cycles	1000000 Cycles	Round (Pin Plunger)	3 A	8.4 mm	0.33 in	PC Pin	-25 °C	85 °C	0.15 mm	0.006 in	IP40	On-Mom	SPDT
Omron Electronics Inc-EMC Div SS-3GPT	30 V	Chassis Mount	0.024 in	0.6 mm	20 gf	153 gf	0.4 mm	0.015 "	125 V	100000 Cycles	1000000 Cycles	Round (Pin Plunger)	3 A	8.4 mm	0.33 in	Quick Connect - 0.110" (2.8mm)	-25 °C	85 °C	0.15 mm	0.006 in	IP40	On-Mom	SPDT
Omron Electronics Inc-EMC Div SS-3GPB	30 V	Through Hole	0.024 in	0.6 mm	20 gf	153 gf	0.4 mm	0.015 "	125 V	100000 Cycles	1000000 Cycles	Round (Pin Plunger)	3 A	8.4 mm	0.33 in	PC Pin	-25 °C	85 °C	0.15 mm	0.006 in	IP40	On-Mom	SPDT
