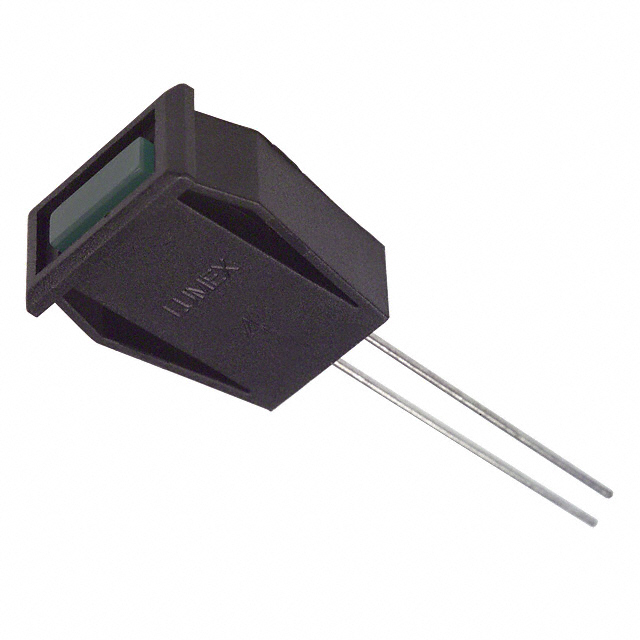

SSI-LXH072GD
ActiveLumex Opto/Components Inc.
LED 2.3X7MM GREEN PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
SSI-LXH072GD
ActiveLumex Opto/Components Inc.
LED 2.3X7MM GREEN PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSI-LXH072GD |
|---|---|
| Current | 25 mA |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [x] | 7 mm |
| Lens Size [y] | 2.3 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 9 mcd |
| Panel Cutout Dimensions [x] | 11 mm |
| Panel Cutout Dimensions [x] | 0.43 in |
| Panel Cutout Dimensions [y] | 5.3 mm |
| Panel Cutout Dimensions [y] | 0.21 in |
| Panel Cutout Shape | Rectangle |
| Type | LED |
| Viewing Angle | 110 ° |
| Voltage | 2.2 V |
| Wavelength - Peak | 565 nm |
SSI-LXH072 Series
| Part | Lens Style | Type | Lens Size [x] | Lens Size [y] | Panel Cutout Shape | Lens Transparency | Viewing Angle | Lens Color | Wavelength - Peak | Voltage | Lamp Color | Millicandela Rating | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. | Rectangle with Flat Top | LED | 7 mm | 2.3 mm | Rectangle | Diffused | 110 ° | Yellow | 585 nm | 2.1 V | Yellow | 160 mcd | |||||
Lumex Opto/Components Inc. | Rectangle with Flat Top | LED | 7 mm | 2.3 mm | Rectangle | Diffused | 110 ° | Red | 660 nm | 1.7 V | Red | 50 mcd | 5.3 mm | 0.21 in | 11 mm | 0.43 in | 30 mA |
Lumex Opto/Components Inc. | Rectangle with Flat Top | LED | 7 mm | 2.3 mm | Rectangle | Diffused | 110 ° | Green | 565 nm | 2.2 V | Green | 9 mcd | 5.3 mm | 0.21 in | 11 mm | 0.43 in | 25 mA |
Lumex Opto/Components Inc. | Rectangle with Flat Top | LED | 7 mm | 2.3 mm | Rectangle | Diffused | 110 ° | Red | 660 nm | 1.8 V | Red | 50 mcd | |||||
Lumex Opto/Components Inc. | Rectangle with Flat Top | LED | 7 mm | 2.3 mm | Rectangle | Diffused | 110 ° | White | 565 nm 635 nm | 2 V 2.2 V | Green Red | 9 mcd 10 mcd | 20 mA 20 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.28 | |
| 10 | $ 0.81 | |||
| 100 | $ 0.60 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.45 | |||
| 2000 | $ 0.43 | |||
| 5000 | $ 0.42 | |||
| 10000 | $ 0.41 | |||
Description
General part information
SSI-LXH072 Series
LED Panel Indicator Green Diffused 110° 2.2V 25mA
