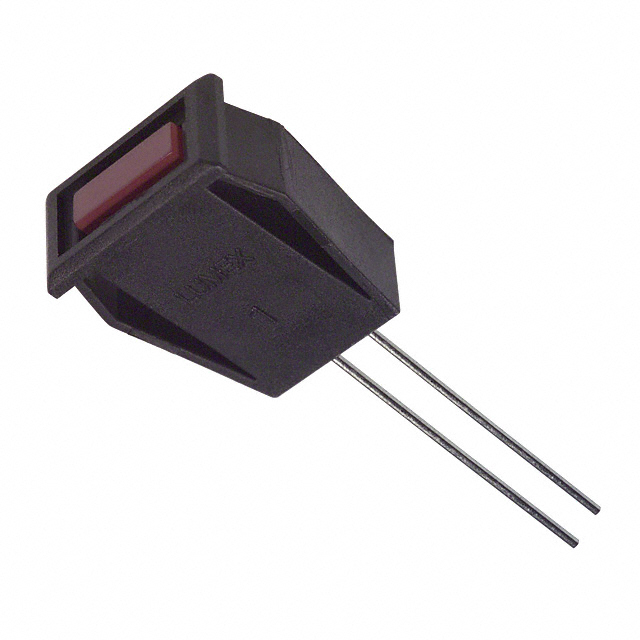

SSI-LXH072SRD

Active

Lumex Opto/Components Inc.

LED 2.3X7MM SUPER RED PANEL MNT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 2.3X7MM SUPER RED PANEL MNT

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Type	Lens Size [x]	Lens Size [y]	Panel Cutout Shape	Lens Transparency	Viewing Angle	Lens Color	Wavelength - Peak	Voltage	Lamp Color	Millicandela Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Current
Lumex Opto/Components Inc. SSI-LXH072SYD-150	Rectangle with Flat Top	LED	7 mm	2.3 mm	Rectangle	Diffused	110 °	Yellow	585 nm	2.1 V	Yellow	160 mcd
Lumex Opto/Components Inc. SSI-LXH072SRD	Rectangle with Flat Top	LED	7 mm	2.3 mm	Rectangle	Diffused	110 °	Red	660 nm	1.7 V	Red	50 mcd	5.3 mm	0.21 in	11 mm	0.43 in	30 mA
Lumex Opto/Components Inc. SSI-LXH072GD	Rectangle with Flat Top	LED	7 mm	2.3 mm	Rectangle	Diffused	110 °	Green	565 nm	2.2 V	Green	9 mcd	5.3 mm	0.21 in	11 mm	0.43 in	25 mA
Lumex Opto/Components Inc. SSI-LXH072SRD-150	Rectangle with Flat Top	LED	7 mm	2.3 mm	Rectangle	Diffused	110 °	Red	660 nm	1.8 V	Red	50 mcd
Lumex Opto/Components Inc. SSI-LXH072IGW3-150	Rectangle with Flat Top	LED	7 mm	2.3 mm	Rectangle	Diffused	110 °	White	565 nm 635 nm	2 V 2.2 V	Green Red	9 mcd 10 mcd					20 mA 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Panel Indicator Red Diffused 110° 1.7V 30mA

Technical documentation and resources

No documents available
