1301.9304

Active

SCHURTER Inc.

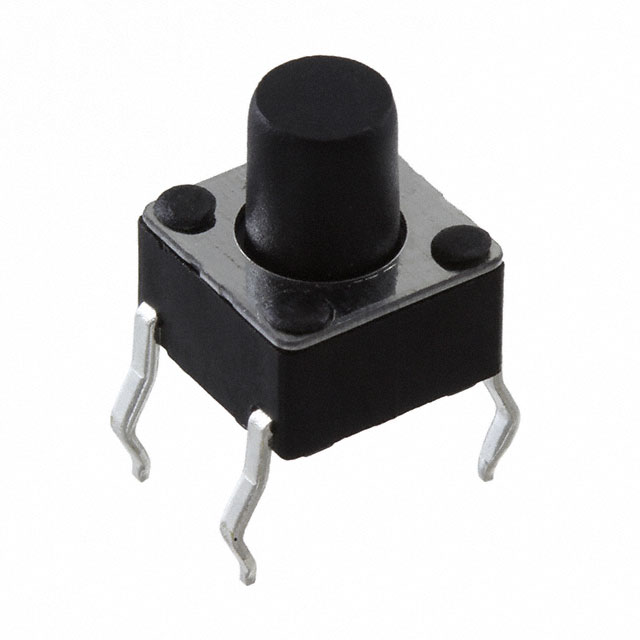

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1301.9304

Active

SCHURTER Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1301.9304

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

- Series

...

Part	Length [x]	Length [x]	Color	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Ingress Protection	Switch Function	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Mechanical Life	Circuit	Features	Outline [y]	Outline [x]	Actuator Type	Mounting Type	Switch Travel	Approved Countries [custom]	Shielding	Style	Cord Type	2nd Connector	Wire Gauge	Current Rating (Amps)	Number of Conductors	Approval Agency Marking	1st Connector	Voltage Rating	Cable Type	Length	Connector Type [diameter]	Number of Positions	Orientation	Connector Type	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Approved Countries	Length	Actuator Height off PCB, Vertical
SCHURTER Inc. 6051.2005	2 m	6.56 ft	Black
SCHURTER Inc. 1301.9304				Non-Illuminated	-20 C	70 °C	PC Pin	IP40	Off-Mom	0.05 A 12 VDC	7.3 mm	Top Actuated	100000 Cycles	SPST-NO	Tactile Feedback	6 mm	6 mm	Standard	Through Hole	0.25 mm
SCHURTER Inc. 6051.2043	2 m	6.56 ft	Black		-25 °C	70 °C									V-Lock						Germany	Unshielded	Female Sockets Male Pins	H05VV-F3G1.5	IEC 320-C19	16 AWG	16 A	3	VDE	CEE 7/7	250 VAC
SCHURTER Inc. 4840.5231		5.9 '																				Unshielded	Plug Right Angle to Wire Leads									Round	1.8 m	4.3 mm 6.5 mm
SCHURTER Inc. 3-133-823	3 m	9.84 ft	Black		-25 °C	70 °C																Unshielded	Female Sockets Male Pins	SJT			10 A	3		NEMA 5-15P	125 VDC
SCHURTER Inc. 4850.3600			Black		-20 C	70 °C									Backshell Strain Relief				Free Hanging (In-Line)								2 A				12 V				6	Keyed	Receptacle Female Sockets	Silver	Push-Pull	Mini DIN
SCHURTER Inc. 0888.0221			Gray		-40 °C	85 °C									Hospital Grade Outdoor Use								Female Sockets Male Pins	SJTW	IEC 320-C19	13.5 AWG	15 A	3	CSA UL	NEMA 5-15P	125 VAC		3.05 m								Canada United States	10 ft
SCHURTER Inc. 6044.0215	2 m	6.56 ft	Black		-40 °C	70 °C																	Female Sockets Male Pins	H05VV-F3G0.75		17 AWG	13 A	3	BSI	BS1363A	250 VAC										United Kingdom
SCHURTER Inc. 1301.9319				Non-Illuminated	-20 C	70 °C	Gull Wing	IP40	Off-Mom	0.05 A 12 VDC		Top Actuated	100000 Cycles	SPST-NO	Tactile Feedback	6 mm	6 mm	Standard	Surface Mount	0.25 mm																							9.5 mm
SCHURTER Inc. 4840.5220		5.9 '																				Unshielded										Round	1.8 m	3.3 mm 5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.25

Description

General part information

- Series

Tactile Switch SPST-NO Top Actuated Through Hole
