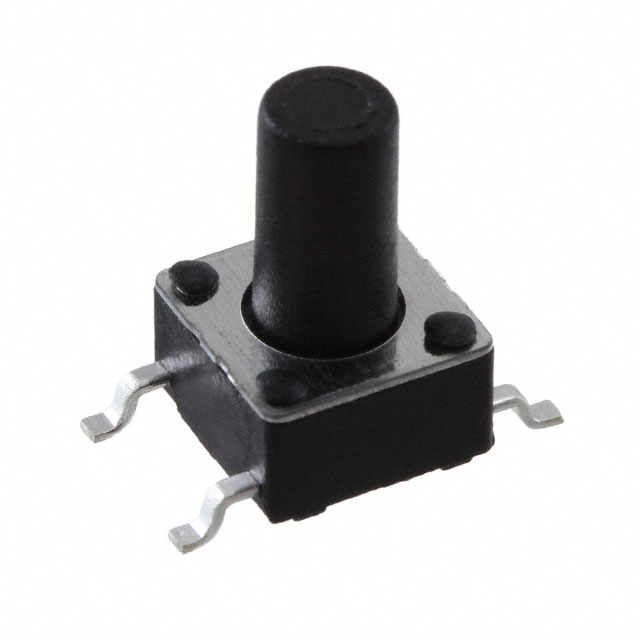

1301.9319

Active

SCHURTER Inc.

ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 1.6N 12V TACTILE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1301.9319

Active

SCHURTER Inc.

ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 1.6N 12V TACTILE SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1301.9319

Actuator Height off PCB, Vertical	9.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Features	Tactile Feedback
Illumination	Non-Illuminated
Ingress Protection	IP40
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

- Series

...

Part	Length [x]	Length [x]	Color	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Ingress Protection	Switch Function	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Mechanical Life	Circuit	Features	Outline [y]	Outline [x]	Actuator Type	Mounting Type	Switch Travel	Approved Countries [custom]	Shielding	Style	Cord Type	2nd Connector	Wire Gauge	Current Rating (Amps)	Number of Conductors	Approval Agency Marking	1st Connector	Voltage Rating	Cable Type	Length	Connector Type [diameter]	Number of Positions	Orientation	Connector Type	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Approved Countries	Length	Actuator Height off PCB, Vertical
SCHURTER Inc. 6051.2005	2 m	6.56 ft	Black
SCHURTER Inc. 1301.9304				Non-Illuminated	-20 C	70 °C	PC Pin	IP40	Off-Mom	0.05 A 12 VDC	7.3 mm	Top Actuated	100000 Cycles	SPST-NO	Tactile Feedback	6 mm	6 mm	Standard	Through Hole	0.25 mm
SCHURTER Inc. 6051.2043	2 m	6.56 ft	Black		-25 °C	70 °C									V-Lock						Germany	Unshielded	Female Sockets Male Pins	H05VV-F3G1.5	IEC 320-C19	16 AWG	16 A	3	VDE	CEE 7/7	250 VAC
SCHURTER Inc. 4840.5231		5.9 '																				Unshielded	Plug Right Angle to Wire Leads									Round	1.8 m	4.3 mm 6.5 mm
SCHURTER Inc. 3-133-823	3 m	9.84 ft	Black		-25 °C	70 °C																Unshielded	Female Sockets Male Pins	SJT			10 A	3		NEMA 5-15P	125 VDC
SCHURTER Inc. 4850.3600			Black		-20 C	70 °C									Backshell Strain Relief				Free Hanging (In-Line)								2 A				12 V				6	Keyed	Receptacle Female Sockets	Silver	Push-Pull	Mini DIN
SCHURTER Inc. 0888.0221			Gray		-40 °C	85 °C									Hospital Grade Outdoor Use								Female Sockets Male Pins	SJTW	IEC 320-C19	13.5 AWG	15 A	3	CSA UL	NEMA 5-15P	125 VAC		3.05 m								Canada United States	10 ft
SCHURTER Inc. 6044.0215	2 m	6.56 ft	Black		-40 °C	70 °C																	Female Sockets Male Pins	H05VV-F3G0.75		17 AWG	13 A	3	BSI	BS1363A	250 VAC										United Kingdom
SCHURTER Inc. 1301.9319				Non-Illuminated	-20 C	70 °C	Gull Wing	IP40	Off-Mom	0.05 A 12 VDC		Top Actuated	100000 Cycles	SPST-NO	Tactile Feedback	6 mm	6 mm	Standard	Surface Mount	0.25 mm																							9.5 mm
SCHURTER Inc. 4840.5220		5.9 '																				Unshielded										Round	1.8 m	3.3 mm 5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
LCSC	Piece	1	$ 0.46
		200	$ 0.18
		500	$ 0.18
		1000	$ 0.18

Description

General part information

- Series

Tactile Switch SPST-NO Top Actuated Surface Mount
