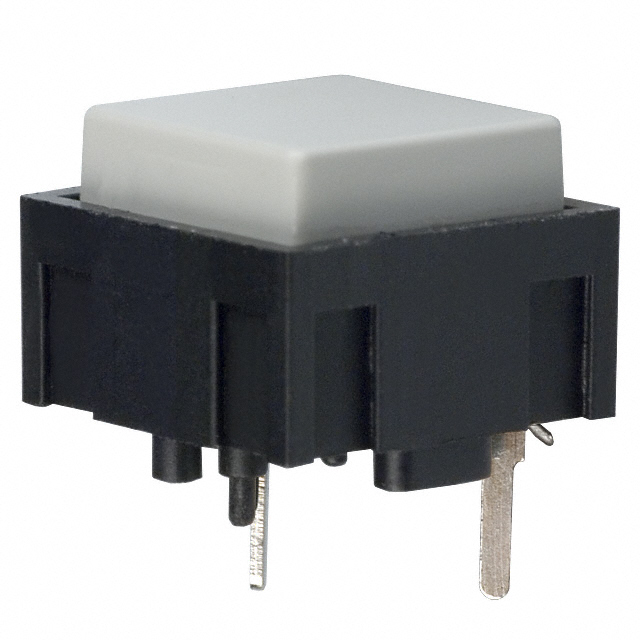

320.01E11GRY

Active

E-Switch

SWITCH TACT SPST-NO 0.025A 50V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACT SPST-NO 0.025A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	320.01E11GRY

Actuator Height off PCB, Vertical [z]	10 mm
Actuator Material	Polycarbonate (PC)
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	0.025 A, 50 VDC
Features	Gray Cap
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force	135 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	12.4 mm
Outline [y]	12.4 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.6 mm
Termination Style	PC Pin

Part	Switch Travel [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Mechanical Life	Illumination	Actuator Type	Circuit	Switch Function	Actuator Orientation	Actuator Material	Termination Style	Operating Force	Mounting Type	Features
E-Switch 320.01E11BLK	0.6 mm	-20 C	70 °C	0.025 A 50 VDC	10 mm	12.4 mm	12.4 mm	1000000 Cycles	Non-Illuminated	Square Button	SPST-NO	Off-Mom	Top Actuated	Polycarbonate (PC)	PC Pin	135 gf	Through Hole	Black Cap
E-Switch 320.01E11ORG	0.6 mm	-20 C	70 °C	0.025 A 50 VDC	10 mm	12.4 mm	12.4 mm	1000000 Cycles	Non-Illuminated	Square Button	SPST-NO	Off-Mom	Top Actuated	Polycarbonate (PC)	PC Pin	135 gf	Through Hole	Orange Cap
E-Switch 320.01U11	0.6 mm	-20 C	70 °C	0.025 A 50 VDC	10 mm	12.4 mm	12.4 mm	1000000 Cycles	Non-Illuminated	Square Button	SPST-NO	Off-Mom	Top Actuated	Polycarbonate (PC)	PC Pin	135 gf	Through Hole	Tactile Feedback
E-Switch 320.01E11GRY	0.6 mm	-20 C	70 °C	0.025 A 50 VDC	10 mm	12.4 mm	12.4 mm	1000000 Cycles	Non-Illuminated	Square Button	SPST-NO	Off-Mom	Top Actuated	Polycarbonate (PC)	PC Pin	135 gf	Through Hole	Gray Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
