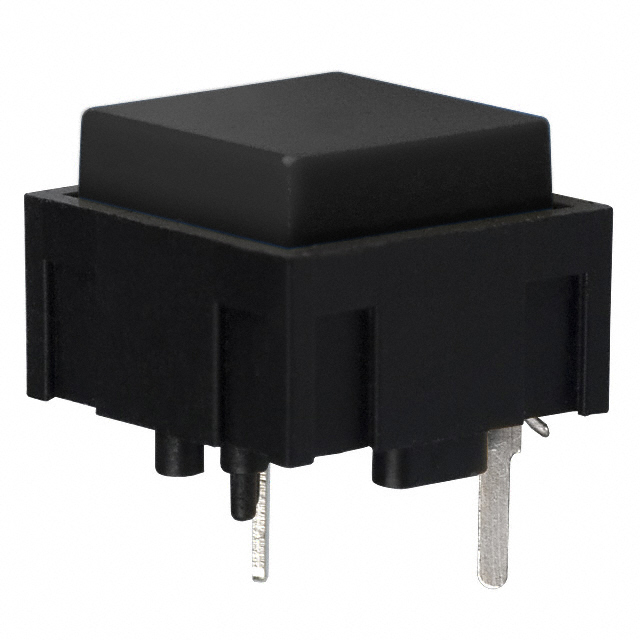

320.01E11BLK
ActiveE-Switch
SWITCH TACT SPST-NO 0.025A 50V
Deep-Dive with AI
Search across all available documentation for this part.
320.01E11BLK
ActiveE-Switch
SWITCH TACT SPST-NO 0.025A 50V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 320.01E11BLK |
|---|---|
| Actuator Height off PCB, Vertical [z] | 10 mm |
| Actuator Material | Polycarbonate (PC) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Square Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.025 A, 50 VDC |
| Features | Black Cap |
| Illumination | Non-Illuminated |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 135 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline [x] | 12.4 mm |
| Outline [y] | 12.4 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.6 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.21 | |||
| 100 | $ 1.92 | |||
| 250 | $ 1.74 | |||
| 810 | $ 1.62 | |||
| 1620 | $ 1.50 | |||
| 3240 | $ 1.36 | |||
| 5670 | $ 1.26 | |||
Description
General part information
320.01 Series
Tactile Switch SPST-NO Top Actuated Through Hole
