RPM11E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG-IN RELAY 250V 15A RPM +OPTI

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG-IN RELAY 250V 15A RPM +OPTI

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Mounting Type	Release Time	Features	Contact Material	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Termination Style	Coil Type	Coil Current	Coil Voltage	Relay Type	Switching Voltage	Must Release Voltage	Coil Resistance	Must Operate Voltage	Approval Agency	Load - Max Switching
SQUARE D BY SCHNEIDER ELECTRIC RPM11P7	20 ms	Socketable	20 ms	Test Button	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	14.1 mA	230 VAC	General Purpose	28 VDC 250 VAC	34.5 VAC	16.27 kOhms	184 VAC	CSA EAC UL	420 W 3750 VA
SQUARE D BY SCHNEIDER ELECTRIC RPM11BD	20 ms	Socketable	20 ms	Lighted Indicator	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	53.3 mA	24 VDC	General Purpose	28 VDC 250 VAC	2.4 VDC	450 Ohms	19.2 VDC	CSA EAC UL	420 W 3750 VA
SQUARE D BY SCHNEIDER ELECTRIC RPM11E7	20 ms	Chassis Mount	20 ms	Test Button	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	67.8 mA	48 VAC/DC	General Purpose	28 VDC 250 VAC	7.2 VAC	708 Ohms	38.4 VAC	CSA EAC UL	420 W 3750 VA
SQUARE D BY SCHNEIDER ELECTRIC RPM11JD	20 ms	Chassis Mount	20 ms	Test Button	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	104.3 mA	12 VDC	General Purpose	28 VDC 250 VAC	1.2 VDC		9.6 VDC	CSA EAC UL	420 W 3750 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

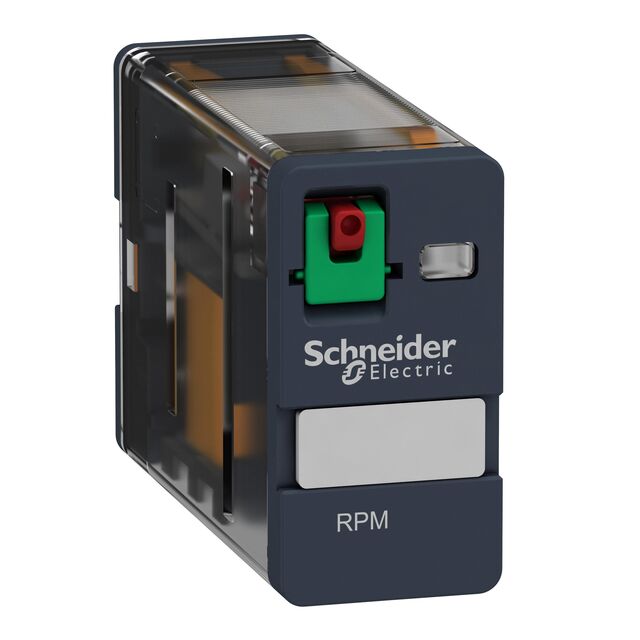

General Purpose Relay SPDT (1 Form C) 48VAC Coil Chassis Mount
