RPM11P7

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

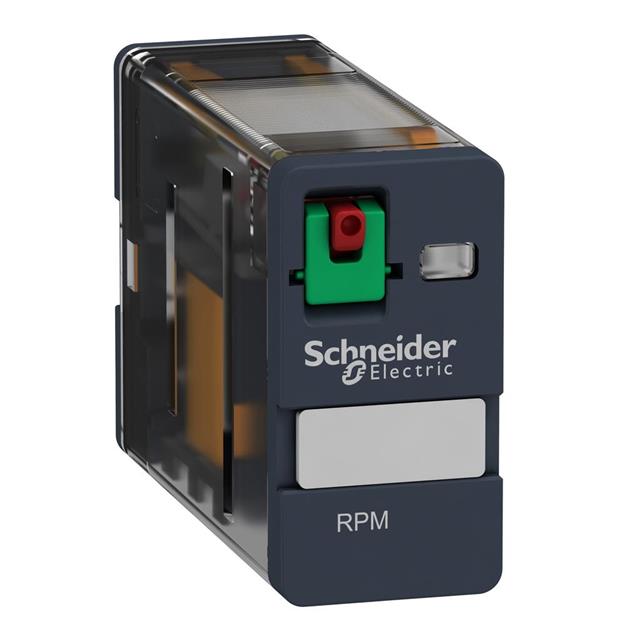

POWER RELAY, SPDT, 230 VAC, 15 A, ZELIO RPM SERIES, SOCKET

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, SPDT, 230 VAC, 15 A, ZELIO RPM SERIES, SOCKET

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Mounting Type	Release Time	Features	Contact Material	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Termination Style	Coil Type	Coil Current	Coil Voltage	Relay Type	Switching Voltage	Must Release Voltage	Coil Resistance	Must Operate Voltage	Approval Agency	Load - Max Switching
SQUARE D BY SCHNEIDER ELECTRIC RPM11P7	20 ms	Socketable	20 ms	Test Button	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	14.1 mA	230 VAC	General Purpose	28 VDC 250 VAC	34.5 VAC	16.27 kOhms	184 VAC	CSA EAC UL	420 W 3750 VA
SQUARE D BY SCHNEIDER ELECTRIC RPM11BD	20 ms	Socketable	20 ms	Lighted Indicator	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	53.3 mA	24 VDC	General Purpose	28 VDC 250 VAC	2.4 VDC	450 Ohms	19.2 VDC	CSA EAC UL	420 W 3750 VA
SQUARE D BY SCHNEIDER ELECTRIC RPM11E7	20 ms	Chassis Mount	20 ms	Test Button	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	67.8 mA	48 VAC/DC	General Purpose	28 VDC 250 VAC	7.2 VAC	708 Ohms	38.4 VAC	CSA EAC UL	420 W 3750 VA
SQUARE D BY SCHNEIDER ELECTRIC RPM11JD	20 ms	Chassis Mount	20 ms	Test Button	Silver Nickel (AgNi)	SPDT (1 Form C)	-40 °C	55 °C	15 A	Plug In	Non Latching	104.3 mA	12 VDC	General Purpose	28 VDC 250 VAC	1.2 VDC		9.6 VDC	CSA EAC UL	420 W 3750 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 230VAC Coil Socketable
