9WV1224P1H001

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Numbering System Splash Proof Fan +1

9WV1224P1H001

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Numbering System Splash Proof Fan +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WV1224P1H001

Air Flow	5.11 m³/min
Air Flow	182.4 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	800 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	58 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	19.2 W
RPM	5200 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	237 Pa
Static Pressure	0.95 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	0.97 lb
Weight	439.98 g
Width [y]	38 mm

9WV1224 Series

Part	Bearing Type	Noise	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage - Rated	Material - Blade	RPM	Fan Type	Ingress Protection	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Termination	Weight	Weight	Air Flow	Air Flow	Power (Watts)	Features	Approval Agency	Static Pressure	Static Pressure	Size / Dimension [y]
Sanyo Denki America Inc. 9WV1224P1H012	Ball	58.5 dB	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120.1 mm	120.1 mm	Square	4 Position Rectangular Connector
Sanyo Denki America Inc. 9WV1224H1D001	Ball	58 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			3 Wire Leads	0.97 lb	440 g	182.3 CFM	5.1 m³/min	19.2 W	Locked Rotor Sensor	CSA TUV UL	237 Pa	0.95 in H2O	120 mm
Sanyo Denki America Inc. 9WV1224P1H001	Ball	58 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			4 Wire Leads	0.97 lb	439.98 g	182.4 CFM	5.11 m³/min	19.2 W	PWM Control Speed Sensor (Tach)	CSA TUV UL	237 Pa	0.95 in H2O	120 mm
Sanyo Denki America Inc. 9WV1224J1001	Ball	64 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	1.5 A	24 VDC	Plastic	6400 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			3 Wire Leads	0.97 lb	440 g	224 CFM	6.27 mł/min	36 W	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	361.2 Pa	1.45 in H2O	120 mm
Sanyo Denki America Inc. 9WV1224H101	Ball	58 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			3 Wire Leads	0.97 lb	440 g	182.3 CFM	5.1 m³/min	19.2 W	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	237 Pa	0.95 in H2O	120 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 70.45
		21	$ 63.74
		42	$ 59.55
		63	$ 58.71
		105	$ 54.09

Description

General part information

9WV1224 Series

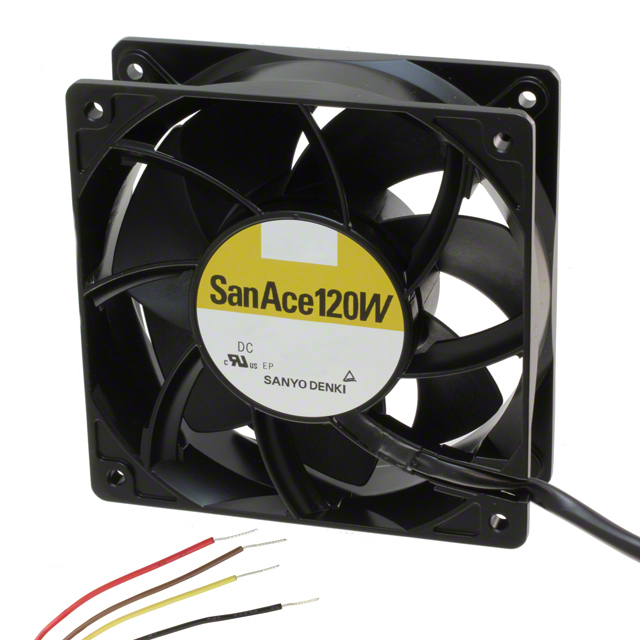

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 182.4 CFM (5.11m³/min) 4 Wire Leads

9WV1224P1H001
