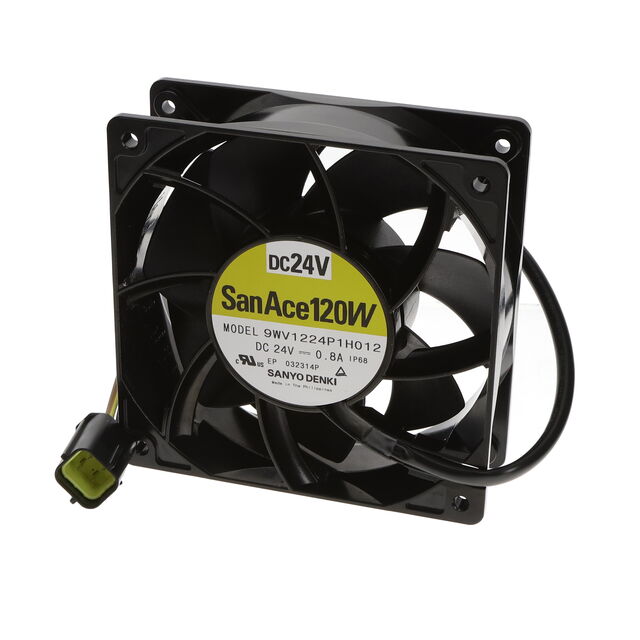

9WV1224P1H012

Active

Sanyo Denki America Inc.

120X38MM, DC, 24V,SPLASH PROOF,R

Deep-Dive with AI

Search across all available documentation for this part.

9WV1224P1H012

Active

Sanyo Denki America Inc.

120X38MM, DC, 24V,SPLASH PROOF,R

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WV1224P1H012

Bearing Type	Ball
Current Rating (Amps)	800 mA
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	58.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	5200 RPM
Size / Dimension	Square
Size / Dimension [x]	120.1 mm
Size / Dimension [z]	120.1 mm
Termination	4 Position Rectangular Connector
Voltage - Rated	24 VDC
Width [y]	38 mm

9WV1224 Series

Part	Bearing Type	Noise	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage - Rated	Material - Blade	RPM	Fan Type	Ingress Protection	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Termination	Weight	Weight	Air Flow	Air Flow	Power (Watts)	Features	Approval Agency	Static Pressure	Static Pressure	Size / Dimension [y]
Sanyo Denki America Inc. 9WV1224P1H012	Ball	58.5 dB	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120.1 mm	120.1 mm	Square	4 Position Rectangular Connector
Sanyo Denki America Inc. 9WV1224H1D001	Ball	58 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			3 Wire Leads	0.97 lb	440 g	182.3 CFM	5.1 m³/min	19.2 W	Locked Rotor Sensor	CSA TUV UL	237 Pa	0.95 in H2O	120 mm
Sanyo Denki America Inc. 9WV1224P1H001	Ball	58 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			4 Wire Leads	0.97 lb	439.98 g	182.4 CFM	5.11 m³/min	19.2 W	PWM Control Speed Sensor (Tach)	CSA TUV UL	237 Pa	0.95 in H2O	120 mm
Sanyo Denki America Inc. 9WV1224J1001	Ball	64 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	1.5 A	24 VDC	Plastic	6400 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			3 Wire Leads	0.97 lb	440 g	224 CFM	6.27 mł/min	36 W	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	361.2 Pa	1.45 in H2O	120 mm
Sanyo Denki America Inc. 9WV1224H101	Ball	58 dB(A)	Aluminum	-20 °C	70 °C	-20 C	70 °C	800 mA	24 VDC	Plastic	5200 RPM	Tubeaxial	IP68 - Dust Tight Waterproof	38 mm	120 mm			3 Wire Leads	0.97 lb	440 g	182.3 CFM	5.1 m³/min	19.2 W	Locked Rotor Protection Speed Sensor (Tach)	CSA TUV UL	237 Pa	0.95 in H2O	120 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.21
		21	$ 66.24
		42	$ 61.88
		63	$ 61.01
		105	$ 56.21

Description

General part information

9WV1224 Series

Fan Tubeaxial 24VDC Square - 120.1mm L x 120.1mm H Ball 4 Position Rectangular Connector

Documents

Technical documentation and resources

No documents available
