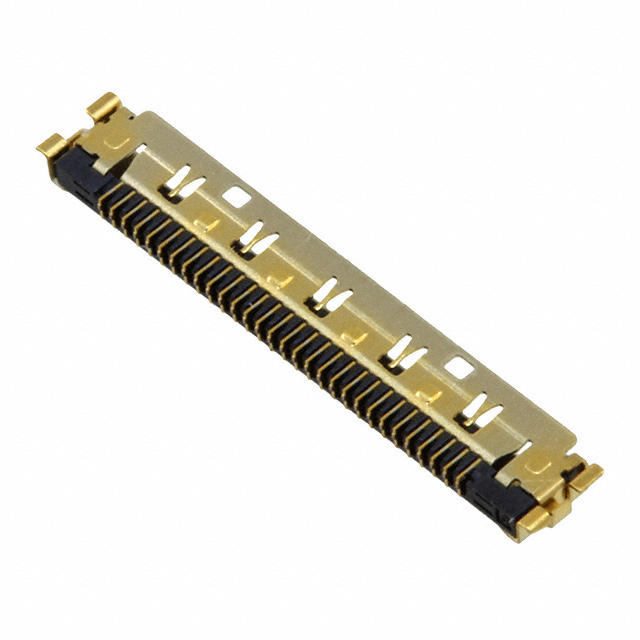

DF81-30S-0.4H(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 30P 0.016 GOLD SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF81-30S-0.4H(51) Spec

DF81-30S-0.4H(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 30P 0.016 GOLD SMD R/A

Deep-Dive with AI

DocumentsDatasheet DF81-30S-0.4H(51) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF81-30S-0.4H(51)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Finish Thickness - Post	2 µin
Contact Finish Thickness - Post	0.051 µm
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating (Amps)	300 mA
Fastening Type	Latch Holder
Features	Shielded, Grounding Tab
Insulation Color	Black
Insulation Height	0.9 mm
Insulation Height	0.035 in
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.016 in
Pitch - Mating	0.4 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

DF81 Series

Part	Number of Positions	For Use With/Related Products	Accessory Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Current Rating (Amps)	Mounting Type	Insulation Color	Voltage Rating	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Connector Type	Features	Termination	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Cable Termination	Pitch [x]	Pitch [x]	Wire Type	Color	Contact Finish
Hirose Electric USA, Inc. DF81-30P-SHL(52)	30	DF81 Series	Shell
Hirose Electric USA, Inc. DF81-40P-LCH	40	DF81 Series	Latch
Hirose Electric USA, Inc. DF81-50S-0.4H(51)	50			0.099 µm	3.9 µin	Center Strip Contact	Gold	300 mA	Surface Mount Right Angle	Black	100 V	Board to Cable/Wire	0.016 in	0.4 mm	Latch Holder	Gold	-35 °C	85 °C	Liquid Crystal Polymer (LCP) Halogen Free	0.9 mm	0.035 in	UL94 V-0	1	Receptacle	Grounding Tab Shielded	Solder	All	2 µin	0.051 µm	Phosphor Bronze
Hirose Electric USA, Inc. DF81-30S-0.4H(51)	30			0.099 µm	3.9 µin	Center Strip Contact	Gold	300 mA	Surface Mount Right Angle	Black	100 V	Board to Cable/Wire	0.016 in	0.4 mm	Latch Holder	Gold	-35 °C	85 °C	Liquid Crystal Polymer (LCP) Halogen Free	0.9 mm	0.035 in	UL94 V-0	1	Receptacle	Grounding Tab Shielded	Solder	All	2 µin	0.051 µm	Phosphor Bronze
Hirose Electric USA, Inc. DF81-40S-0.4H(51)	40			0.099 µm	3.9 µin	Center Strip Contact	Gold	300 mA	Surface Mount Right Angle	Black	100 V	Board to Cable/Wire	0.016 in	0.4 mm	Latch Holder	Gold	-35 °C	85 °C	Liquid Crystal Polymer (LCP) Halogen Free	0.9 mm	0.035 in	UL94 V-0	1	Receptacle	Grounding Tab Shielded	Solder	All	2 µin	0.051 µm	Phosphor Bronze
Hirose Electric USA, Inc. DF81-50P-0.4SD(51)	50					Outer Shroud Contact			Free Hanging (In-Line)														1	Plug							Solder	0.016 in	0.4 mm	Discrete or Ribbon Cable	Black	Gold
Hirose Electric USA, Inc. DF81-50P-LCH	50	DF81 Series	Latch
Hirose Electric USA, Inc. DF81-30P-LCH	30	DF81 Series	Latch
Hirose Electric USA, Inc. DF81-40P-SHL	40	DF81 Series	Shell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.50
		10	$ 1.30
		100	$ 1.17
		500	$ 0.97
		1000	$ 0.83
	Digi-Reel®	1	$ 1.50
		10	$ 1.30
		100	$ 1.17
		500	$ 0.97
		1000	$ 0.83
	Tape & Reel (TR)	8000	$ 0.69

Description

General part information

DF81 Series

30 Position Receptacle Connector 0.016" (0.40mm) Surface Mount, Right Angle Gold
