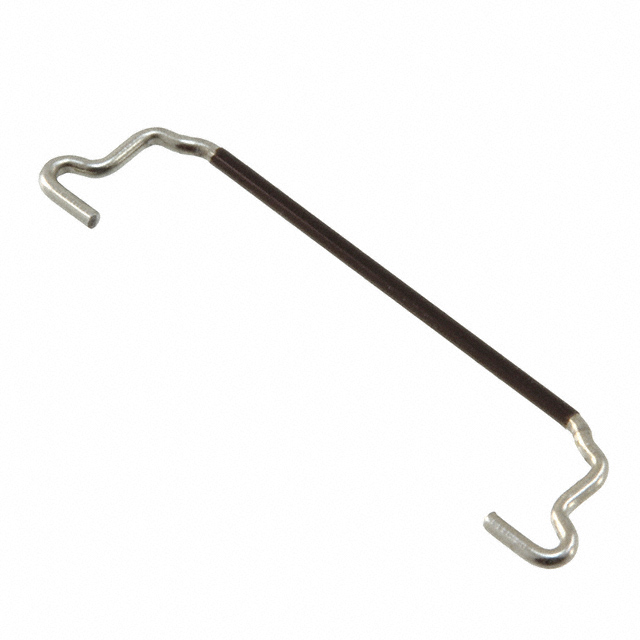

DF81-30P-LCH

Active

Hirose Electric USA, Inc.

CONN LATCH FOR 30POS PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DF81 Series Datasheet

DF81-30P-LCH

Active

Hirose Electric USA, Inc.

CONN LATCH FOR 30POS PLUG

Deep-Dive with AI

DocumentsDatasheet DF81 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF81-30P-LCH

Accessory Type	Latch
For Use With/Related Products	DF81 Series
Number of Positions	30

DF81 Series

Part	Number of Positions	For Use With/Related Products	Accessory Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Current Rating (Amps)	Mounting Type	Insulation Color	Voltage Rating	Style	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Connector Type	Features	Termination	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Cable Termination	Pitch [x]	Pitch [x]	Wire Type	Color	Contact Finish
Hirose Electric USA, Inc. DF81-30P-SHL(52)	30	DF81 Series	Shell
Hirose Electric USA, Inc. DF81-40P-LCH	40	DF81 Series	Latch
Hirose Electric USA, Inc. DF81-50S-0.4H(51)	50			0.099 µm	3.9 µin	Center Strip Contact	Gold	300 mA	Surface Mount Right Angle	Black	100 V	Board to Cable/Wire	0.016 in	0.4 mm	Latch Holder	Gold	-35 °C	85 °C	Liquid Crystal Polymer (LCP) Halogen Free	0.9 mm	0.035 in	UL94 V-0	1	Receptacle	Grounding Tab Shielded	Solder	All	2 µin	0.051 µm	Phosphor Bronze
Hirose Electric USA, Inc. DF81-30S-0.4H(51)	30			0.099 µm	3.9 µin	Center Strip Contact	Gold	300 mA	Surface Mount Right Angle	Black	100 V	Board to Cable/Wire	0.016 in	0.4 mm	Latch Holder	Gold	-35 °C	85 °C	Liquid Crystal Polymer (LCP) Halogen Free	0.9 mm	0.035 in	UL94 V-0	1	Receptacle	Grounding Tab Shielded	Solder	All	2 µin	0.051 µm	Phosphor Bronze
Hirose Electric USA, Inc. DF81-40S-0.4H(51)	40			0.099 µm	3.9 µin	Center Strip Contact	Gold	300 mA	Surface Mount Right Angle	Black	100 V	Board to Cable/Wire	0.016 in	0.4 mm	Latch Holder	Gold	-35 °C	85 °C	Liquid Crystal Polymer (LCP) Halogen Free	0.9 mm	0.035 in	UL94 V-0	1	Receptacle	Grounding Tab Shielded	Solder	All	2 µin	0.051 µm	Phosphor Bronze
Hirose Electric USA, Inc. DF81-50P-0.4SD(51)	50					Outer Shroud Contact			Free Hanging (In-Line)														1	Plug							Solder	0.016 in	0.4 mm	Discrete or Ribbon Cable	Black	Gold
Hirose Electric USA, Inc. DF81-50P-LCH	50	DF81 Series	Latch
Hirose Electric USA, Inc. DF81-30P-LCH	30	DF81 Series	Latch
Hirose Electric USA, Inc. DF81-40P-SHL	40	DF81 Series	Shell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.26
		10	$ 0.20
		25	$ 0.18
		50	$ 0.17
		100	$ 0.15
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.12
		2500	$ 0.11

Description

General part information

DF81 Series

Connector Latch For DF81 Series

Documents

Technical documentation and resources

Datasheet

DF81 Series Datasheet

Datasheet
