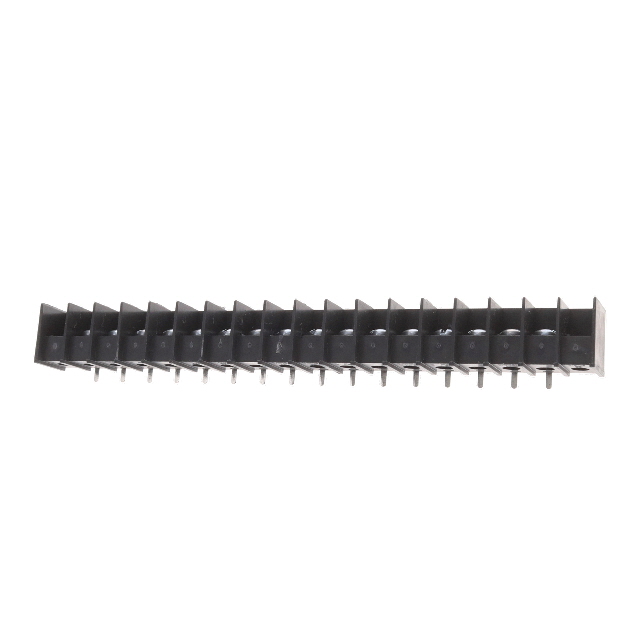

325210-16-0

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

325210-16-0

Active

Curtis Industries

CONN BARRIER STRP 16CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325210-16-0

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	16
Number of Rows	1
Number of Wire Entries	16
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325210 Series

Part	Mounting Type	Material Flammability Rating	Terminal Block Type	Top Termination	Current Rating (Amps)	Barrier Type	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Bottom Termination	Pitch [x]	Pitch [x]	Terminal Screw Material	Voltage Rating	Material - Insulation	Features	Number of Wire Entries	Number of Circuits	Number of Circuits [custom]
Curtis Industries 325210-09-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	9
Curtis Industries 325210-02-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	2	2
Curtis Industries 325210-08-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	8		8
Curtis Industries 325210-12-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	12	12
Curtis Industries 325210-15-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	15	15
Curtis Industries 325210-16-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	16	16
Curtis Industries 325210-03-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	3	3
Curtis Industries 325210-20-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	20	20
Curtis Industries 325210-05-0	Chassis Panel Through Hole	UL94 V-0	Barrier Block	Screws	15 A	3 Wall (Tri)	1	14 AWG	22 AWG	105 C	PC Pin	8.26 mm	0.325 in	Steel	300 VDC	Polypropylene (PP)	Flange	5	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.26
		10	$ 9.03
		30	$ 8.52
		50	$ 8.11
		100	$ 7.95
		250	$ 6.93
		500	$ 6.67
		1000	$ 6.41

Description

General part information

325210 Series

16 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
