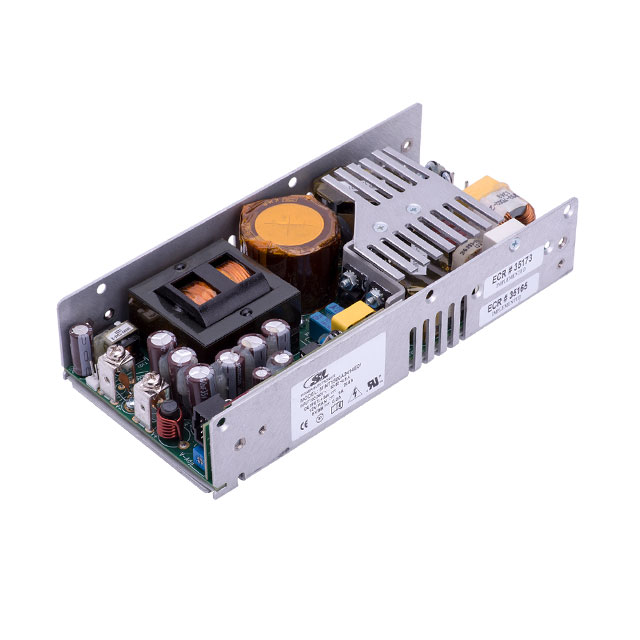

MINT1500B2414E01

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 350W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 350W

Technical Specifications

Parameters and characteristics for this part

Specification	MINT1500B2414E01

Applications	Medical
Approval Agency	CE
Current - Output 1	14.6 A
Efficiency	93 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	350 W
Power (Watts)	500 W
Size / Dimension [x]	182.1 mm
Size / Dimension [x]	7.17 in
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Applications	Approval Agency	Power (Watts)	Power (Watts)	Features	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Number of Outputs	Type	Efficiency
SL POWER / Advanced Energy MINT1500A4814E01	Medical	CE	350 W	500 W	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	4000 V	-10 °C	70 °C	Chassis Mount	48 V	83.82 mm	7 "	83.8 mm	1.5 "	177.8 mm	38.2 mm	90 VAC	270 VAC	7.3 A	1	Open Frame	93 %
SL POWER / Advanced Energy MINT1500B2414E01	Medical	CE	350 W	500 W	DC Input Capable Universal Input	4000 V	-10 °C	70 °C	Chassis Mount	24 V	83.8 mm	182.1 mm	3.3 in	38.1 mm	7.17 in	1.5 "			14.6 A	1	Open Frame	93 %
SL POWER / Advanced Energy MINT1500B4814E01	Medical	CE	350 W	500 W	DC Input Capable Universal Input	4000 V	-10 °C	70 °C	Chassis Mount	48 V	83.8 mm	182.1 mm	3.3 in	38.1 mm	7.17 in	1.5 "			7.3 A	1	Open Frame	93 %
SL POWER / Advanced Energy MINT1500A5614E01	Medical	CE	350 W	500 W	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	4000 V	-10 °C	70 °C	Chassis Mount	56 V	83.82 mm	7 "	83.8 mm	1.5 "	177.8 mm	38.2 mm	90 VAC	270 VAC	6.3 A	1	Open Frame	93 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 276 VAC Input
