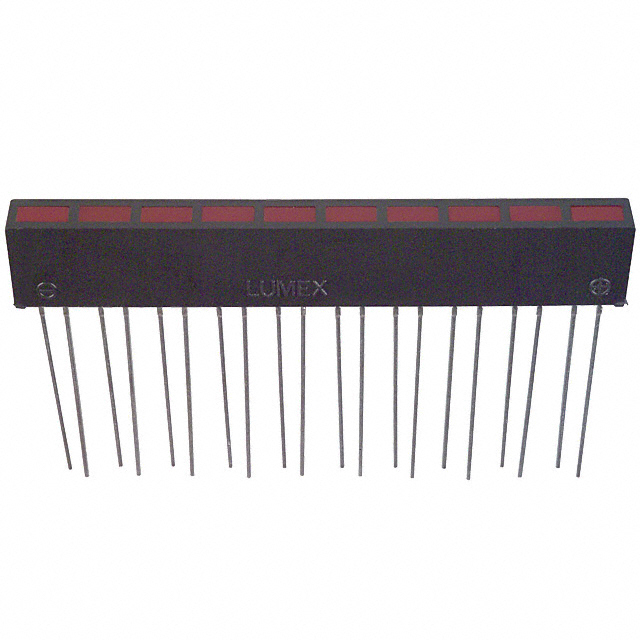

SSA-LXH1025ID
ActiveLumex Opto/Components Inc.
LED CBI 5X2.5MM 10-SEG RED VERT
Deep-Dive with AI
Search across all available documentation for this part.
SSA-LXH1025ID
ActiveLumex Opto/Components Inc.
LED CBI 5X2.5MM 10-SEG RED VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSA-LXH1025ID |
|---|---|
| Color | Red (x 10) |
| Configuration | Bar, SIP |
| Configuration [y] | 10 |
| Current | 30 mA |
| Lens Size [x] | 5 mm |
| Lens Size [y] | 2.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 10 mcd |
| Mounting Type | Through Hole |
| Viewing Angle | 110 ° |
| Voltage Rating | 2 V |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.45 | |
| 10 | $ 3.15 | |||
| 200 | $ 2.58 | |||
| 600 | $ 2.17 | |||
| 1000 | $ 1.99 | |||
| 2000 | $ 1.91 | |||
| 5000 | $ 1.87 | |||
Description
General part information
SSA-LXH1025 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, SIP Red (x 10) Diffused, Tinted 2V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
