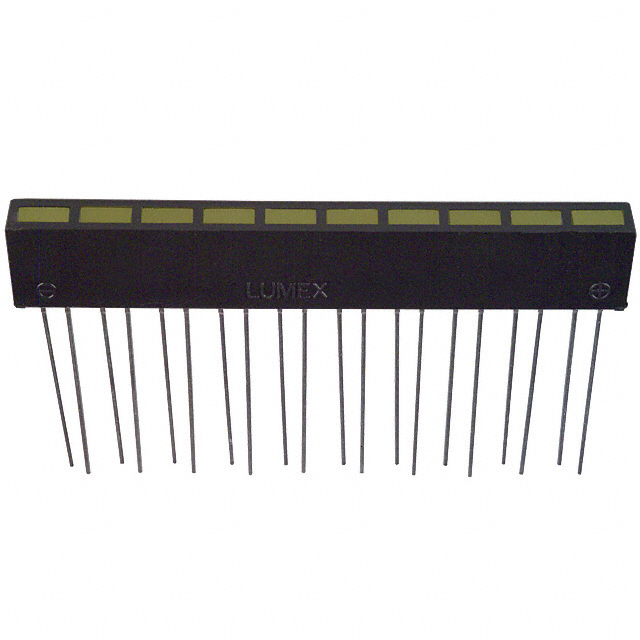

SSA-LXH1025YD

Active

Lumex Opto/Components Inc.

LED CBI 5X2.5MM 10-SEG YLW VERT

Deep-Dive with AI

Search across all available documentation for this part.

SSA-LXH1025YD

Active

Lumex Opto/Components Inc.

LED CBI 5X2.5MM 10-SEG YLW VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-LXH1025YD

Color	Yellow
Configuration	Bar, SIP
Configuration [y]	10
Current	30 mA
Lens Size [x]	5 mm
Lens Size [y]	2.5 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole
Viewing Angle	110 °
Voltage Rating	2.1 V
Wavelength - Peak	585 nm

SSA-LXH1025 Series

Part	Millicandela Rating	Configuration	Configuration [y]	Lens Type	Lens Style	Current	Color	Lens Size [y]	Lens Size [x]	Mounting Type	Viewing Angle	Wavelength - Peak	Voltage Rating	Current
Lumex Opto/Components Inc. SSA-LXH1025GD	10 mcd	Bar SIP	10	Diffused Tinted	Rectangle with Flat Top	25 mA	Green (x 10)	2.5 mm	5 mm	Through Hole	60 °	565 nm
Lumex Opto/Components Inc. SSA-LXH1025SUGD	50 mcd	Bar SIP	10	Diffused	Rectangle with Flat Top		Green	2.5 mm	5 mm	Through Hole	110 °
Lumex Opto/Components Inc. SSA-LXH1025YD	10 mcd	Bar SIP	10	Diffused Tinted	Rectangle with Flat Top	30 mA	Yellow	2.5 mm	5 mm	Through Hole	110 °	585 nm	2.1 V
Lumex Opto/Components Inc. SSA-LXH1025ID	10 mcd	Bar SIP	10	Diffused Tinted	Rectangle with Flat Top	30 mA	Red (x 10)	2.5 mm	5 mm	Through Hole	110 °	635 nm	2 V
Lumex Opto/Components Inc. SSA-LXH1025G8Y1I1D	10 mcd 10 mcd 15 mcd	Bar SIP	10	Diffused Green Red Yellow	Rectangle with Flat Top		Green Red Yellow	2.5 mm	5 mm	Through Hole	110 °	565 nm 585 nm 635 nm	2 V 2 V 2.2 V	20mA Green 20mA Red 20mA Yellow
Lumex Opto/Components Inc. SSA-LXH1025SRD	50 mcd	Bar SIP	10	Diffused Tinted	Rectangle with Flat Top	30 mA	Red (x 10)	2.5 mm	5 mm	Through Hole	110 °	660 nm	1.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSA-LXH1025 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, SIP Yellow (x 10) Diffused, Tinted 2.1V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole

Documents

Technical documentation and resources

No documents available
