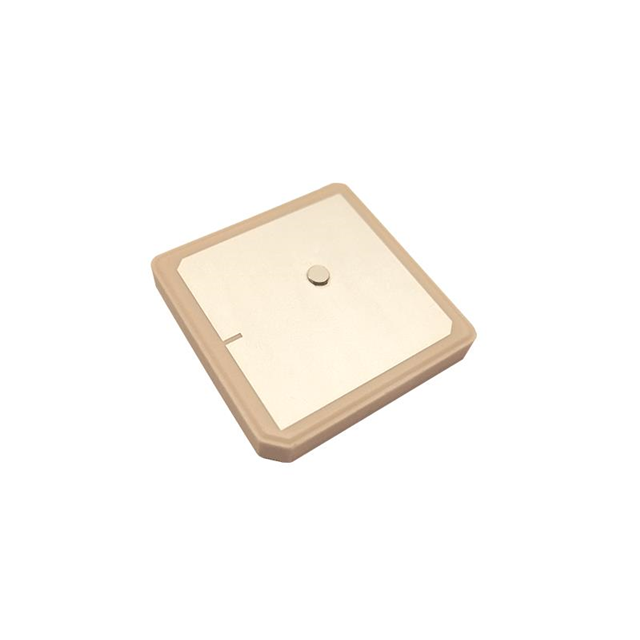

ANT2525B00DTGNSSS
ActivePulse Electronics
ANTENNA PATCH GNSS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT2525B00DTGNSSS
ActivePulse Electronics
ANTENNA PATCH GNSS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT2525B00DTGNSSS |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, GLONASS, Beidou, GNSS |
| Frequency (Center/Band) | 1.5845 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.61 GHz |
| Frequency Range [Min] | 1.559 GHz |
| Gain | 5.16 dBic |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.37 | |
| 10 | $ 2.20 | |||
| 25 | $ 1.89 | |||
| 80 | $ 1.60 | |||
| 230 | $ 1.40 | |||
| 440 | $ 1.30 | |||
| 945 | $ 1.20 | |||
| 2400 | $ 1.11 | |||
| 4900 | $ 1.05 | |||
Description
General part information
ANT2525 Series
RF ANTENNA Beidou, GLONASS, GNSS, GPS Ceramic Patch Pin Adhesive
