ANT2525B00FTGNSSS

Active

Pulse Electronics

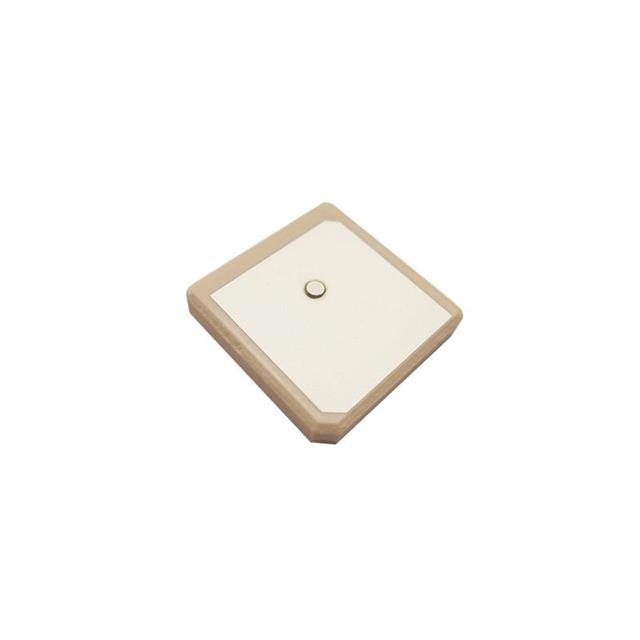

RF ANT 1.58GHZ CER PATCH PIN ADH

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 1.58GHZ CER PATCH PIN ADH

Technical Specifications

Parameters and characteristics for this part

Part	Number of Bands	RF Family/Standard	Frequency (Center/Band)	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Termination	Antenna Type	Height (Max)	Height (Max) [Max] [z]	VSWR	Mounting Type	Applications	Frequency Range [Min]	Frequency Range [Max]	Gain	Power - Max [Max]	Return Loss
Pulse Electronics ANT2525B00FTGNSSS	1	Navigation	1.58 GHz	2 GHz	1 GHz	UHF	Pin	Ceramic Patch	4 mm	0.157 in	2	Adhesive	GPS	1.559 GHz	1.61 GHz	5.16 dBic	1 W
Pulse Electronics ANT2525B00BT1516S	2	Navigation	1.575 GHz 1.602 GHz	2 GHz	1 GHz	UHF	Solder	Ceramic Patch	4 mm	0.157 in	2	Surface Mount	GLONASS GPS	1.575 GHz	1.606 GHz	4.51 dBi 4.72 dBi		-32.828 dB -31.357 dB
Pulse Electronics ANT2525B00DTGNSSS	1	Navigation	1.5845 GHz	2 GHz	1 GHz	UHF	Pin	Ceramic Patch	4 mm	0.157 in	2	Adhesive	Beidou GLONASS GNSS GPS	1.559 GHz	1.61 GHz	5.16 dBic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1600	$ 0.85

General part information

RF ANTENNA GPS Ceramic Patch Pin Adhesive
