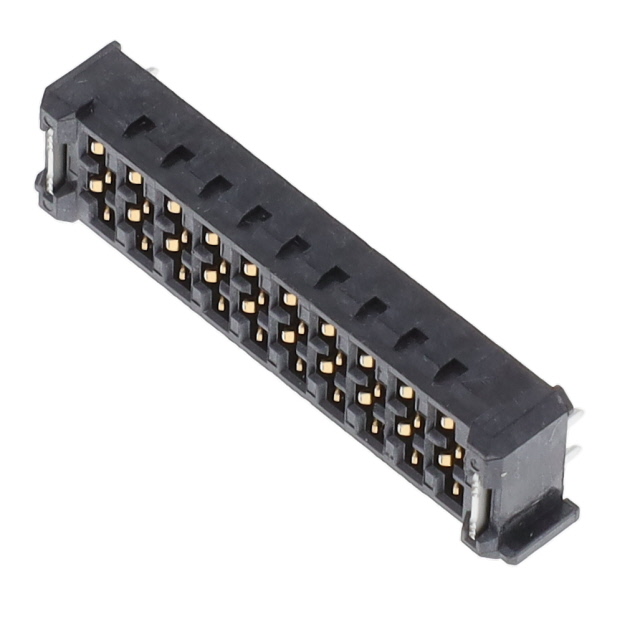

UMPS-10-03.5-L-V-S-W-TR - UMPS-10-03.5-L-V-S-W-TR

UMPS-10-03.5-L-V-S-W-TR

Active
Samtec Inc.

CONN ULTRA MICRO SOCKET STRIP SKT 10POWER POS 2MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
UMPS-10-03.5-L-V-S-W-TR - UMPS-10-03.5-L-V-S-W-TR

UMPS-10-03.5-L-V-S-W-TR

Active
Samtec Inc.

CONN ULTRA MICRO SOCKET STRIP SKT 10POWER POS 2MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationUMPS-10-03.5-L-V-S-W-TR
ColorBlack
Connector TypeReceptacle, Female Blade Sockets
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialCopper Alloy
FeaturesSolder Retention
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions10
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]0.079 in
Pitch [x]2 mm
TerminationSolder
Voltage Rating650 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 1$ 6.82
10$ 6.30
25$ 5.96
50$ 5.77
DigikeyCut Tape (CT) 1$ 6.82
10$ 6.30
25$ 5.96
50$ 5.74
100$ 4.67
Tape & Reel (TR) 450$ 4.67
900$ 4.31

Description

General part information

UMPS-10 Series

10 Position Receptacle, Female Blade Sockets Connector Solder 0.079" (2.00mm) Surface Mount

Documents

Technical documentation and resources

Datasheet

Datasheet
