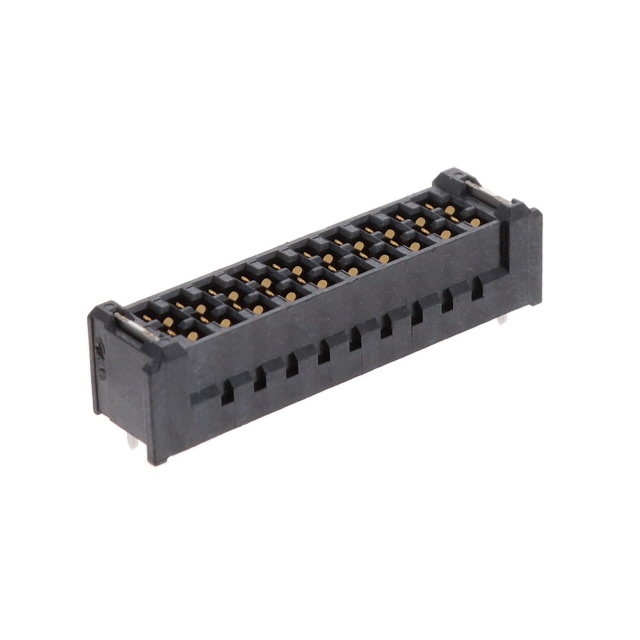

UMPS-10-05.5-L-V-S-W-TR
ActiveSamtec Inc.
CONN RCPT 10POS 2.00MM SMD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UMPS-10-05.5-L-V-S-W-TR
ActiveSamtec Inc.
CONN RCPT 10POS 2.00MM SMD SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UMPS-10-05.5-L-V-S-W-TR |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Blade Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Features | Solder Retention |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Solder |
| Voltage Rating | 650 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.14 | |
| 10 | $ 6.60 | |||
| 25 | $ 6.23 | |||
| 50 | $ 6.01 | |||
| 100 | $ 4.88 | |||
| Tape & Reel (TR) | 350 | $ 4.88 | ||
| 700 | $ 4.58 | |||
Description
General part information
UMPS-10 Series
10 Position Receptacle, Female Blade Sockets Connector Solder 0.079" (2.00mm) Surface Mount
