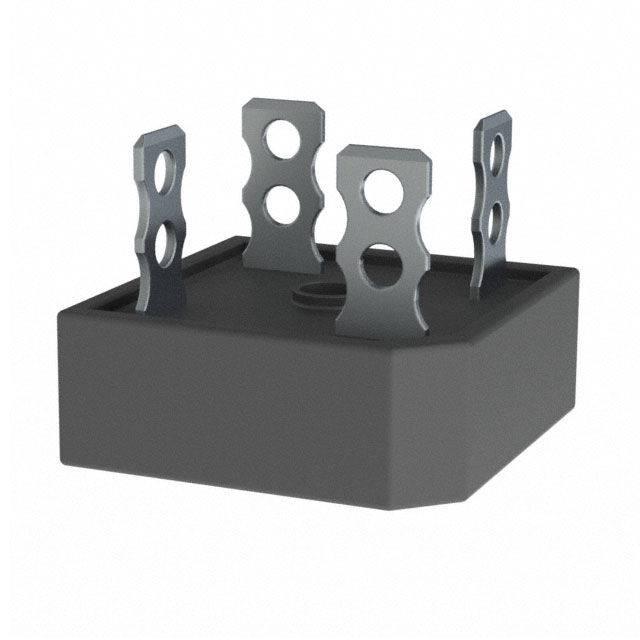

GBPC1510M

Active

Taiwan Semiconductor Corporation

15A, 1000V, STANDARD BRIDGE RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

15A, 1000V, STANDARD BRIDGE RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC1510M

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, GBPC-M
Supplier Device Package	GBPC-M
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Package / Case	Diode Type	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If
Taiwan Semiconductor Corporation GBPC1510M T0G	4-Square GBPC-M	Single Phase	1000 V	15 A	QC Terminal	-55 °C	150 °C	GBPC-M	5 µA	Standard	1.1 V
Taiwan Semiconductor Corporation GBPC1510M	4-Square GBPC-M	Single Phase	1000 V	15 A	Chassis Mount	-55 °C	150 °C	GBPC-M	5 µA	Standard	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1 kV Chassis Mount GBPC-M
