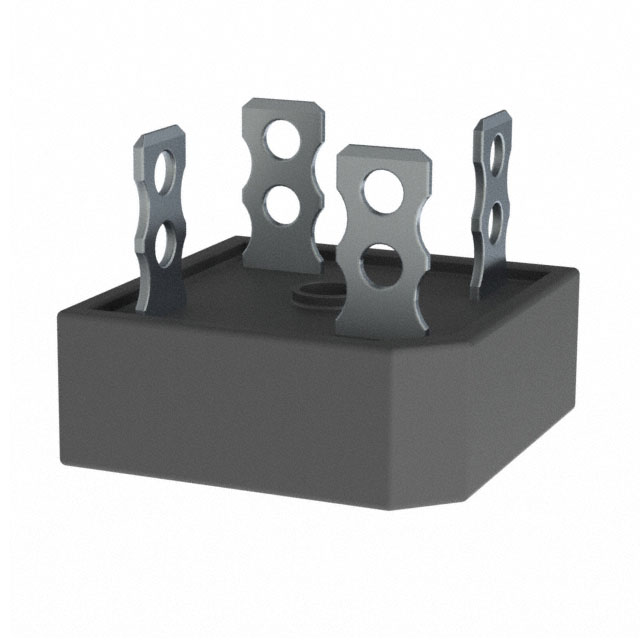

GBPC1510M T0G

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1P 1KV 15A GBPC-M

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1P 1KV 15A GBPC-M

Technical Specifications

Parameters and characteristics for this part

Specification	GBPC1510M T0G

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, GBPC-M
Supplier Device Package	GBPC-M
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Package / Case	Diode Type	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Voltage - Forward (Vf) (Max) @ If
Taiwan Semiconductor Corporation GBPC1510M T0G	4-Square GBPC-M	Single Phase	1000 V	15 A	QC Terminal	-55 °C	150 °C	GBPC-M	5 µA	Standard	1.1 V
Taiwan Semiconductor Corporation GBPC1510M	4-Square GBPC-M	Single Phase	1000 V	15 A	Chassis Mount	-55 °C	150 °C	GBPC-M	5 µA	Standard	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 1 kV QC Terminal GBPC-M
