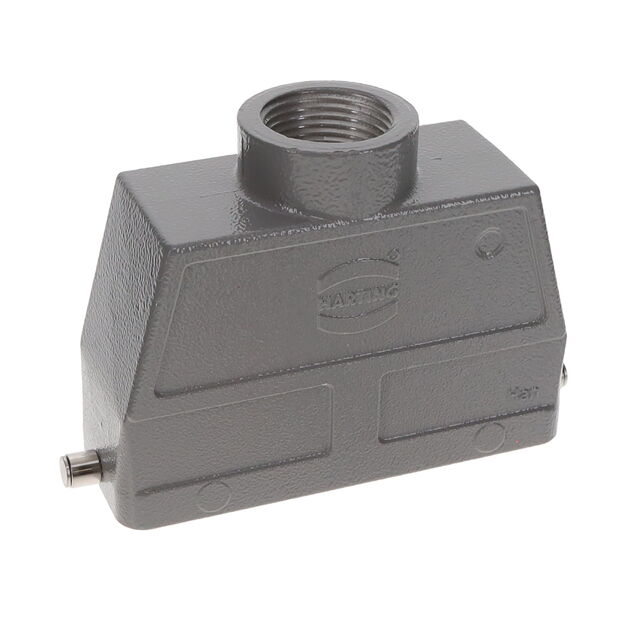

24B HOOD TOP ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, NPT1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09305240441

Active

HARTING Technology Group

24B HOOD TOP ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, NPT1"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09305240441

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP66, IP67, IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	NPT-1

09305240 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Style	Size	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Connector Type	Thread Size	Lock Location	Housing Color	Housing Finish
HARTING Technology Group 09305240440	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (1) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240521				Side Entry	24 B		120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-1	Locking Clip (2) on Base Bottom
HARTING Technology Group 09305240421	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-1	Locking Clip (2) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240441	125 °C	-40 °C	IP65 IP66 IP67	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-1	Locking Clip (1) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240420	125 °C	-40 °C	IP65 IP66 IP67	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (2) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240520	125 °C	-40 °C	IP65 IP66 IP67	Side Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (2) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240531	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (1) on Base Bottom	Gray	Powder Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 97.47
		10	$ 73.68
		25	$ 66.79
		50	$ 62.31
		100	$ 58.37
Newark	Each	1	$ 73.30
		10	$ 69.19
		25	$ 67.13
		50	$ 62.19
		100	$ 58.89

Description

General part information

09305240 Series

Hood Connector Top Entry NPT-1 24B IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof
