HAN 24B-HSE-NPTF 1"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09305240521

LTB

HARTING Technology Group

HAN 24B-HSE-NPTF 1"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09305240521

Connector Type	Hood
Lock Location	Locking Clip (2) on Base Bottom
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	NPT-1

09305240 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Style	Size	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Connector Type	Thread Size	Lock Location	Housing Color	Housing Finish
HARTING Technology Group 09305240440	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (1) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240521				Side Entry	24 B		120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-1	Locking Clip (2) on Base Bottom
HARTING Technology Group 09305240421	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-1	Locking Clip (2) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240441	125 °C	-40 °C	IP65 IP66 IP67	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-1	Locking Clip (1) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240420	125 °C	-40 °C	IP65 IP66 IP67	Top Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (2) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240520	125 °C	-40 °C	IP65 IP66 IP67	Side Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (2) on Base Bottom	Gray	Powder Coated
HARTING Technology Group 09305240531	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Side Entry	24 B	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Hood	NPT-3/4	Locking Clip (1) on Base Bottom	Gray	Powder Coated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.97
		10	$ 60.94
		25	$ 55.14
		50	$ 51.38
		100	$ 48.07

Description

General part information

09305240 Series

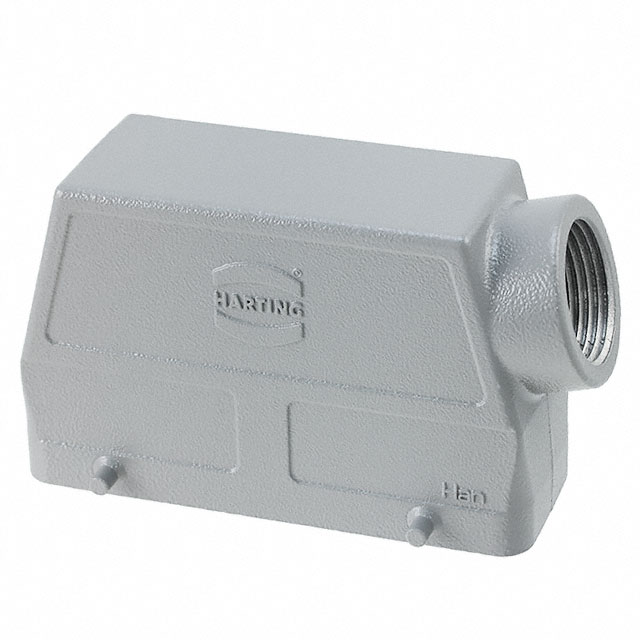

Hood Connector Side Entry NPT-1 24B
