192926-0550
ActiveITT Cannon, LLC

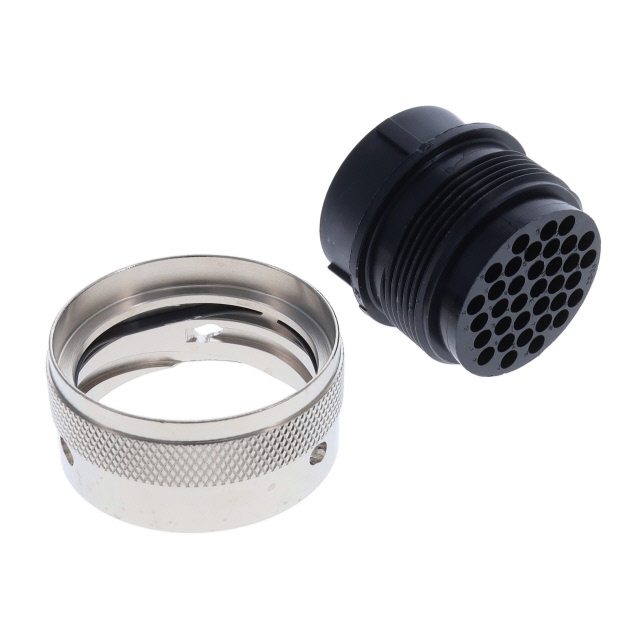

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, REVERSED PLUG, 35 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
192926-0550
ActiveITT Cannon, LLC
CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, REVERSED PLUG, 35 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 192926-0550 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Detent Lock |
| Features | Coupling Nut |
| Housing Color | Black, Silver |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 35 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.57 | |
| 10 | $ 10.26 | |||
| 25 | $ 9.86 | |||
| 50 | $ 9.47 | |||
| 100 | $ 9.26 | |||
Description
General part information
19292 Series
35 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
