192922-1300

Active

ITT Cannon, LLC

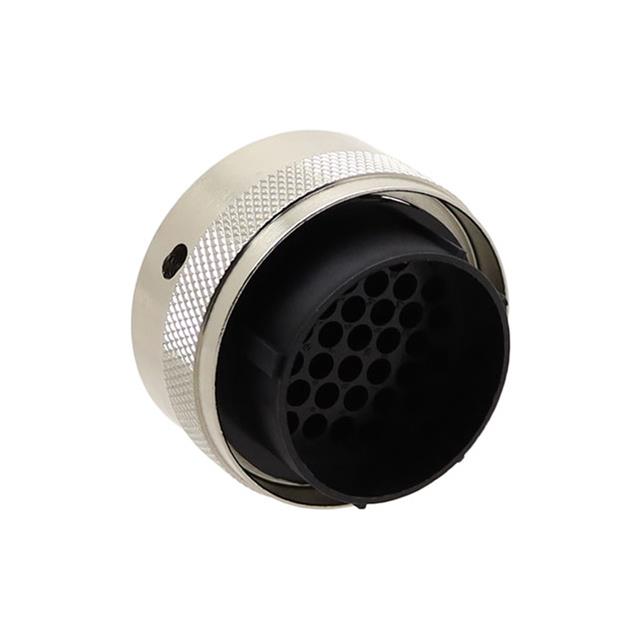

CONN PLUG HSG MALE 35POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

192922-1300

Active

ITT Cannon, LLC

CONN PLUG HSG MALE 35POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	192922-1300

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Detent Lock
Features	Coupling Nut
Housing Color	Black, Silver
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	35
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	22
Shielding	Unshielded
Type	For Male Pins

19292 Series

Part	Material Flammability Rating	Mounting Type	Features	Contact Type	Orientation	Shielding	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Shape	Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Note	Connector Type	Number of Positions	Insert Material	Shell Size - Insert	Mounting Feature	Color	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Includes	Material	For Use With/Related Products	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]
ITT Cannon, LLC 192926-0550	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	Crimp and Solder Cup	Keyed	Unshielded	Black Silver	105 ░C	-55 °C	Detent Lock	Circular	For Female Sockets	22	35	Contacts Not Included	Plug Housing	35	Nylon Polyamide (PA)
ITT Cannon, LLC 192926-0460	UL94 V-0			Crimp Solder Solder Cup	Keyed	Unshielded	Black	105 ░C	-55 °C	Detent Lock	Circular	For Male Pins			Contacts Not Included	Receptacle Housing	12	Nylon Polyamide (PA)	14-12	Flange
ITT Cannon, LLC 192922-1360	UL94 V-0		Clamp Screws			Unshielded						Backshell Cable Clamp									Black	0.905 in	22.99 mm	22	1 Backshell 2 Screws 3 Clamp Bars	Polyamide (PA) Nylon	Discrete Wires or Jacketed Cables	180 °	39.6 mm	1.559 in
ITT Cannon, LLC 192922-1300	UL94 V-0	Free Hanging (In-Line)	Coupling Nut	Crimp and Solder Cup	Keyed	Unshielded	Black Silver	105 ░C	-55 °C	Detent Lock	Circular	For Male Pins	22	35	Contacts Not Included	Plug Housing	35	Nylon Polyamide (PA)
ITT Cannon, LLC 192922-1230	UL94 V-0			Crimp Solder Solder Cup	Keyed	Unshielded	Black	105 ░C	-55 °C	Detent Lock	Circular	For Female Sockets	20	28	Contacts Not Included	Receptacle Housing	28	Nylon Polyamide (PA)		Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.81
		10	$ 17.34
		25	$ 16.59
		50	$ 16.06
		100	$ 15.52
		250	$ 14.67
		500	$ 14.24

Description

General part information

19292 Series

35 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
