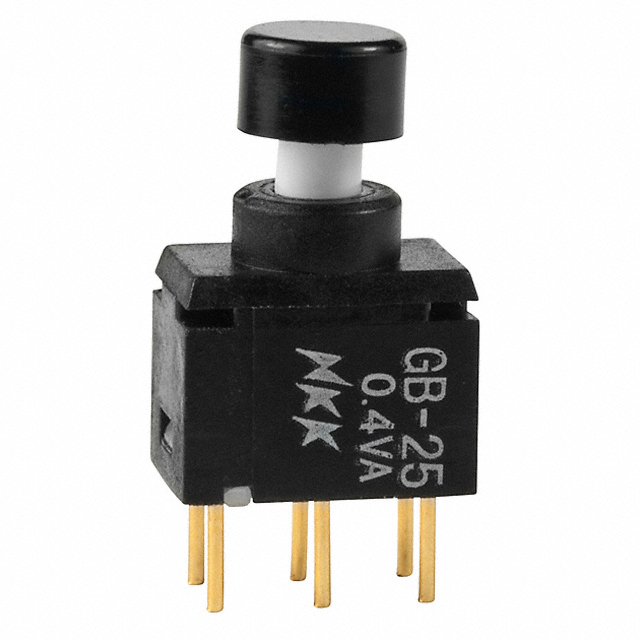

GB25AP-XA
ActiveNKK Switches
SWITCH PUSH DPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GB25AP-XA
ActiveNKK Switches
SWITCH PUSH DPDT 0.4VA 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GB25AP-XA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.92 | |
| 10 | $ 5.11 | |||
| 25 | $ 4.82 | |||
| 40 | $ 4.68 | |||
| 80 | $ 4.47 | |||
| 230 | $ 4.18 | |||
| 440 | $ 4.01 | |||
| 945 | $ 3.81 | |||
Description
General part information
GB25AP Series
Pushbutton Switch DPDT Standard Through Hole
