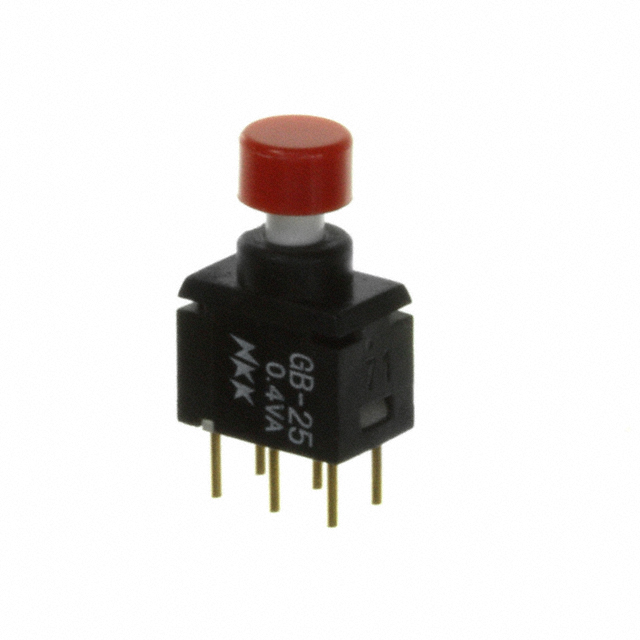

GB25AP-XC - GB25AP-XC

GB25AP-XC

Active
NKK Switches

PUSHBUTTON SWITCH, GB SERIES, DPDT, ON-(ON), ROUND, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
GB25AP-XC - GB25AP-XC

GB25AP-XC

Active
NKK Switches

PUSHBUTTON SWITCH, GB SERIES, DPDT, ON-(ON), ROUND, RED

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationGB25AP-XC
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitDPDT
Color - Actuator/CapRed
Current Rating (Amps)0.4 VA
Electrical Life50000 Cycles
Mounting TypeThrough Hole
Operating Temperature [Max]85 °C
Operating Temperature [Min]-30 ░C
Switch FunctionOn-Mom
Termination StylePC Pin
TypeStandard
Voltage Rating - AC28 V
Voltage Rating - DC28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 4.77
10$ 4.29
25$ 4.08
40$ 3.91
80$ 3.80
NewarkEach 1$ 12.82
5$ 11.96
10$ 11.00
25$ 10.04
50$ 9.08
100$ 8.02
250$ 7.20

Description

General part information

GB25AP Series

Pushbutton Switch DPDT Standard Through Hole
