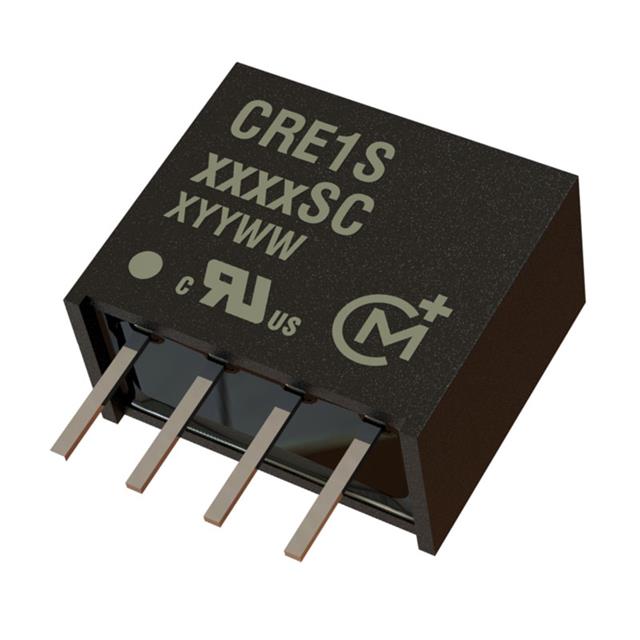

CRE1S0515SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 15 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

CRE1S0515SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 15 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CRE1S0515SC

Applications	ITE (Commercial)
Current - Output (Max) [Max]	67 mA
Efficiency	80 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Size / Dimension [x]	11.5 mm
Size / Dimension [x]	0.45 in
Size / Dimension [y]	6.1 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	15 V

CRE1S Series

Part	Mounting Type	Type	Applications	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [Max]	Efficiency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. CRE1S0505MC-R	Surface Mount	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	5 Leads	14-SMD Module	68 %	60950-1	7.7 mm	0.26 "	12.7 mm	6.6 mm	0.5 in	0.3 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505S3C	Through Hole	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	4-SIP Module		77 %	60950-1	6.1 mm	0.3 "	11.5 mm	7.5 mm	0.45 in	0.24 "	3000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505MEC	Surface Mount	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	5 Leads	14-SMD Module		60950-1	10.7 mm	0.28 "	12.7 mm	7.1 mm	0.5 in	0.42 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S1212SC	Through Hole	Isolated Module	ITE (Commercial)	1	83 mA	85 °C	-40 °C	4-SIP Module		80 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	12 V	10.8 V	13.2 V
Murata Power Solutions Inc. CRE1S0515SC	Through Hole	Isolated Module	ITE (Commercial)	1	67 mA	85 °C	-40 °C	4-SIP Module		80 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	15 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505SC	Through Hole	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	4-SIP Module		70 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	5 V	4.5 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.98
		5	$ 2.97
		10	$ 2.94
		25	$ 2.91
		50	$ 2.84
		100	$ 2.70
		250	$ 2.52
		500	$ 2.35
		1000	$ 2.21
Newark	Each	25	$ 3.21
		50	$ 3.14
		100	$ 3.00
		250	$ 2.81

Description

General part information

CRE1S Series

The CRE1 series are a 1W DC/DC converter series, in industry standard packages with industry standard pinout. Popular input and output voltages are available. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from -40°C and full 1 watt output at 85°C.
