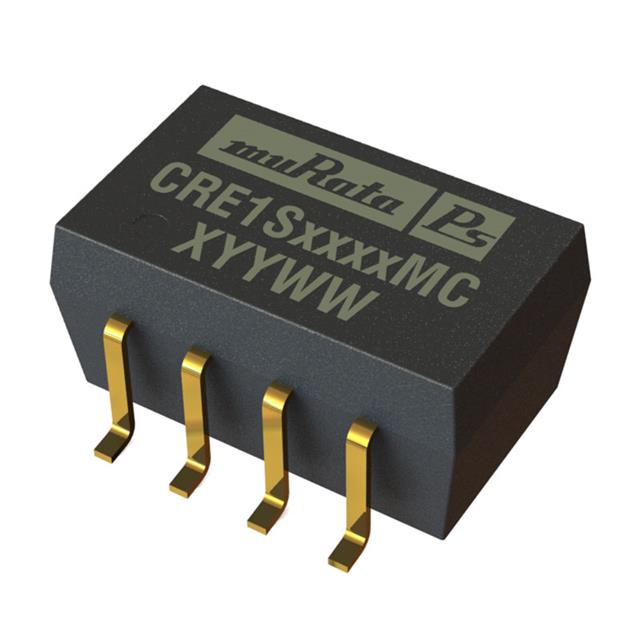

CRE1S0505MC-R

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CRE1S0505MC-R

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CRE1S0505MC-R

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	68 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5 Leads
Package / Case [Max]	14-SMD Module
Size / Dimension [x]	12.7 mm
Size / Dimension [x]	0.5 in
Size / Dimension [y]	7.7 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	0.26 "
Size / Dimension [z]	6.6 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	5 V

CRE1S Series

Part	Mounting Type	Type	Applications	Number of Outputs	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [Max]	Efficiency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. CRE1S0505MC-R	Surface Mount	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	5 Leads	14-SMD Module	68 %	60950-1	7.7 mm	0.26 "	12.7 mm	6.6 mm	0.5 in	0.3 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505S3C	Through Hole	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	4-SIP Module		77 %	60950-1	6.1 mm	0.3 "	11.5 mm	7.5 mm	0.45 in	0.24 "	3000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505MEC	Surface Mount	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	5 Leads	14-SMD Module		60950-1	10.7 mm	0.28 "	12.7 mm	7.1 mm	0.5 in	0.42 "	1000 V	5 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S1212SC	Through Hole	Isolated Module	ITE (Commercial)	1	83 mA	85 °C	-40 °C	4-SIP Module		80 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	12 V	10.8 V	13.2 V
Murata Power Solutions Inc. CRE1S0515SC	Through Hole	Isolated Module	ITE (Commercial)	1	67 mA	85 °C	-40 °C	4-SIP Module		80 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	15 V	4.5 V	5.5 V
Murata Power Solutions Inc. CRE1S0505SC	Through Hole	Isolated Module	ITE (Commercial)	1	200 mA	85 °C	-40 °C	4-SIP Module		70 %	60950-1	6.1 mm	0.39 in	11.5 mm	10 mm	0.45 in	0.24 "	1000 V	5 V	4.5 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.21
		5	$ 3.19
		10	$ 3.17
		25	$ 3.14
		50	$ 3.06
		100	$ 2.91
		250	$ 2.72
	Digi-Reel®	1	$ 3.21
		5	$ 3.19
		10	$ 3.17
		25	$ 3.14
		50	$ 3.06
		100	$ 2.91
		250	$ 2.72
	Tape & Reel (TR)	500	$ 2.54
		1000	$ 2.38
Newark	Each (Supplied on Cut Tape)	1	$ 3.54
		10	$ 3.49
		25	$ 3.46
		50	$ 3.38
		100	$ 3.22
		250	$ 3.03

Description

General part information

CRE1S Series

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
