QR/P-12S-C(21)

Active

Hirose Electric USA, Inc.

PLUG-IN RECTANGULAR RACK/PANEL CRIMP CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

PLUG-IN RECTANGULAR RACK/PANEL CRIMP CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Usage	Pitch [x]	Pitch [x]	Connector Type	Connector Style	Features	Number of Rows	Number of Positions	Note	Number of Positions
Hirose Electric USA, Inc. QR/P4-24P-C(21)	Blue	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	24	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-16S-C(21)	Blue	Receptacle	2.54 mm	0.1 in	Housing for Female Sockets	Rack and Panel	Mating Guide	2		Contacts Not Included	16
Hirose Electric USA, Inc. QR/P4-24P-C(26)	Black	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	24	Contacts Not Included
Hirose Electric USA, Inc. QR/P-8P-C(01)	Blue	Plug	4.5 mm	0.177 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	8	Contacts Not Included
Hirose Electric USA, Inc. QR/P-12P-C(21)	Blue	Plug	4.5 mm	0.177 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	12	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-8P-C(21)	Black	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	8	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-12S-C(21)	Black	Receptacle	2.54 mm	0.1 in	Housing for Female Sockets	Rack and Panel	Mating Guide	2	12	Contacts Not Included
Hirose Electric USA, Inc. QR/P-12S-C(21)	Blue	Receptacle	4.5 mm	0.177 in	Housing for Female Sockets	Rack and Panel	Mating Guide	2	12	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-32P-C(26)	Black	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2		Contacts Not Included
Hirose Electric USA, Inc. QR/P-16P-C(01)	Blue	Plug	4.5 mm	0.177 in	Housing for Male Pins	Rack and Panel	Guide Pin	2		Contacts Not Included	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

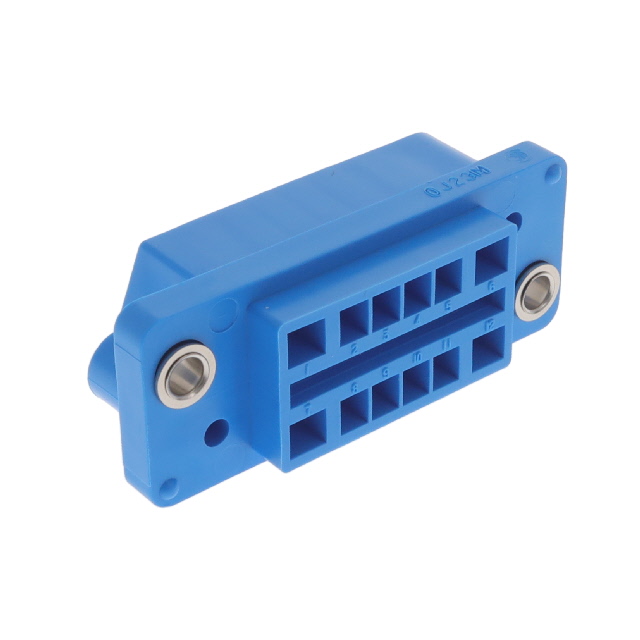

12 Position Housing for Female Sockets Connector Blue Panel Mount Rack and Panel
