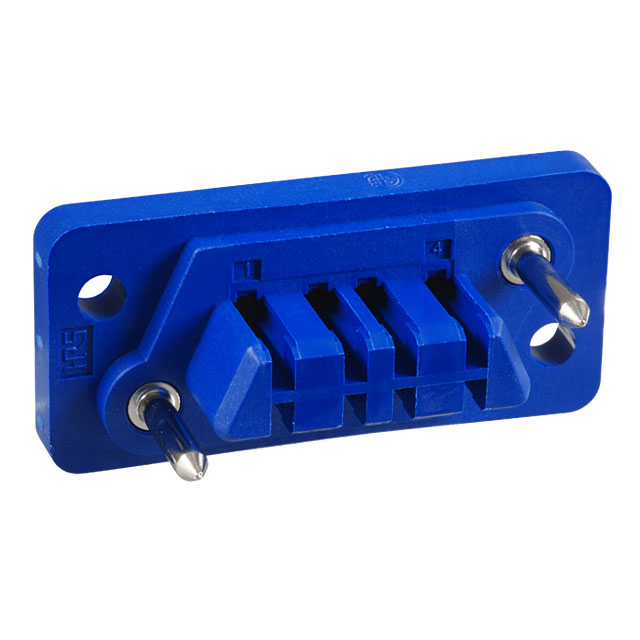

QR/P-8P-C(01)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG RACK & PNL 8P BLU

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG RACK & PNL 8P BLU

Technical Specifications

Parameters and characteristics for this part

Part	Color	Connector Usage	Pitch [x]	Pitch [x]	Connector Type	Connector Style	Features	Number of Rows	Number of Positions	Note	Number of Positions
Hirose Electric USA, Inc. QR/P4-24P-C(21)	Blue	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	24	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-16S-C(21)	Blue	Receptacle	2.54 mm	0.1 in	Housing for Female Sockets	Rack and Panel	Mating Guide	2		Contacts Not Included	16
Hirose Electric USA, Inc. QR/P4-24P-C(26)	Black	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	24	Contacts Not Included
Hirose Electric USA, Inc. QR/P-8P-C(01)	Blue	Plug	4.5 mm	0.177 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	8	Contacts Not Included
Hirose Electric USA, Inc. QR/P-12P-C(21)	Blue	Plug	4.5 mm	0.177 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	12	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-8P-C(21)	Black	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2	8	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-12S-C(21)	Black	Receptacle	2.54 mm	0.1 in	Housing for Female Sockets	Rack and Panel	Mating Guide	2	12	Contacts Not Included
Hirose Electric USA, Inc. QR/P-12S-C(21)	Blue	Receptacle	4.5 mm	0.177 in	Housing for Female Sockets	Rack and Panel	Mating Guide	2	12	Contacts Not Included
Hirose Electric USA, Inc. QR/P4-32P-C(26)	Black	Plug	2.54 mm	0.1 in	Housing for Male Pins	Rack and Panel	Guide Pin	2		Contacts Not Included
Hirose Electric USA, Inc. QR/P-16P-C(01)	Blue	Plug	4.5 mm	0.177 in	Housing for Male Pins	Rack and Panel	Guide Pin	2		Contacts Not Included	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Housing for Male Pins Connector Blue Panel Mount Rack and Panel

Technical documentation and resources
