GA10K3A1AM

Active

TE Connectivity Measurement Specialties

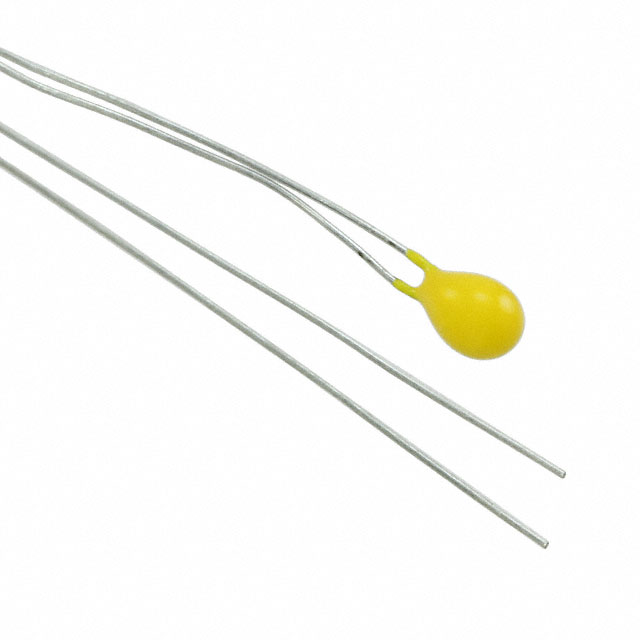

THERMISTOR NTC 10KOHM 3976K BEAD

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

THERMISTOR NTC 10KOHM 3976K BEAD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Resistance in Ohms @ 25°C	B Value Tolerance	Mounting Type	B25/85	Operating Temperature [Max]	Operating Temperature [Min]	Resistance Tolerance	Power - Max [Max]	Length - Lead Wire [x]	Length - Lead Wire [x]
TE Connectivity Measurement Specialties GA10K3A1IA	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C	0.1 °C
TE Connectivity Measurement Specialties GA10K3435STM010		10k	1 %	Free Hanging	3435 K	105 ░C	-35 °C	1 %	400 mW
TE Connectivity Measurement Specialties GA10K3D1303	Pipe Sensor Assembly	10k	2 %	Clip On	3435 K	125 °C	-40 °C	1 %
TE Connectivity Measurement Specialties GA10K3D1116		10k						0.1 °C
TE Connectivity Measurement Specialties GA10K3A1AM	Bead	10k	0.5 %	Free Hanging	3976 K	90 °C	-40 °C	0.05 °C
TE Connectivity Measurement Specialties GA10K3A1IB	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C
TE Connectivity Measurement Specialties GA10K3MBD1	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C			41 mm	1.61 in
TE Connectivity Measurement Specialties GA10K3MRBD1	Bead	10k	0.5 %	Free Hanging	3976 K	100 °C	-40 °C			50 mm	1.97 in
TE Connectivity Measurement Specialties GA10K3A1B	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C
TE Connectivity Measurement Specialties GA10K3A1A	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C	0.1 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NTC Thermistor 10k Bead
