GA10K3D1303

Active

TE Connectivity Measurement Specialties

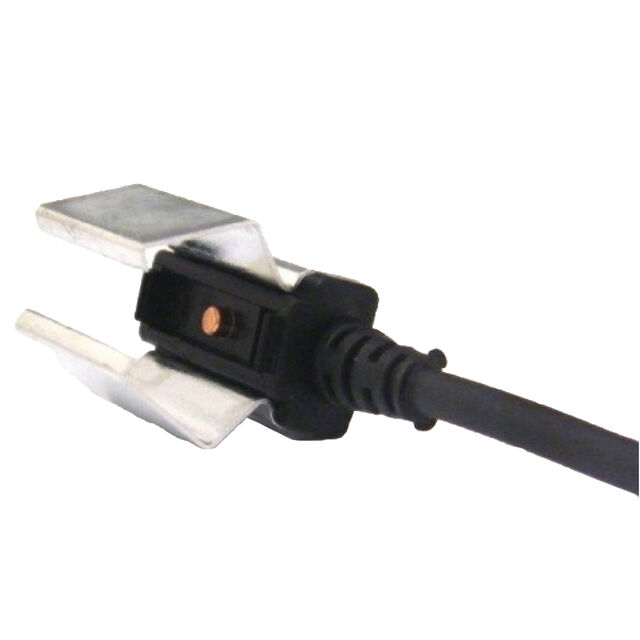

CLAMP-ON PROBE 10M CABLE

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

CLAMP-ON PROBE 10M CABLE

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Resistance in Ohms @ 25°C	B Value Tolerance	Mounting Type	B25/85	Operating Temperature [Max]	Operating Temperature [Min]	Resistance Tolerance	Power - Max [Max]	Length - Lead Wire [x]	Length - Lead Wire [x]
TE Connectivity Measurement Specialties GA10K3A1IA	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C	0.1 °C
TE Connectivity Measurement Specialties GA10K3435STM010		10k	1 %	Free Hanging	3435 K	105 ░C	-35 °C	1 %	400 mW
TE Connectivity Measurement Specialties GA10K3D1303	Pipe Sensor Assembly	10k	2 %	Clip On	3435 K	125 °C	-40 °C	1 %
TE Connectivity Measurement Specialties GA10K3D1116		10k						0.1 °C
TE Connectivity Measurement Specialties GA10K3A1AM	Bead	10k	0.5 %	Free Hanging	3976 K	90 °C	-40 °C	0.05 °C
TE Connectivity Measurement Specialties GA10K3A1IB	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C
TE Connectivity Measurement Specialties GA10K3MBD1	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C			41 mm	1.61 in
TE Connectivity Measurement Specialties GA10K3MRBD1	Bead	10k	0.5 %	Free Hanging	3976 K	100 °C	-40 °C			50 mm	1.97 in
TE Connectivity Measurement Specialties GA10K3A1B	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C
TE Connectivity Measurement Specialties GA10K3A1A	Bead	10k	0.5 %	Free Hanging	3976 K	125 °C	-40 °C	0.1 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NTC Thermistor 10k Pipe Sensor Assembly
